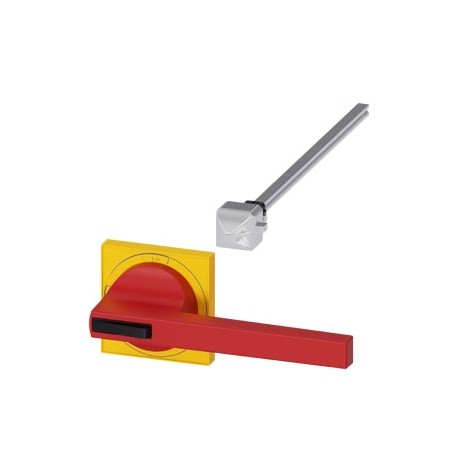

3KD9515-2 SIEMENS Accessory for 3KD size 5 door-coupling rotary operating mechanism Complete operating mecha..
3KD9515-2
95152
SIEMENS
1 Pcs.
Automation > Door coupling handle for switchgear
3KD Switch-disconnectors, 3KC Power Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
3KD9515-2 SIEMENS Accessory for 3KD size 5 door-coupling rotary operating mechanism Complete operating mecha.. provides robust external door actuation for heavy-duty switch disconnectors housed in industrial electrical cabinets. This mechanism ensures that panel doors remain interlocked when the switch is closed to maximize operator safety.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- With door interlock (EF001969): true
- Lockable (EF000113): true
- With handle red/yellow (EF001970): FALSE
- Product designation: Accessories for switch disconnectors
- Design of the product: Door-coupling rotary operating mechanism
- Type of the driving mechanism: MANUAL OPERATING MECHANISM
- protection class IP / on the front: IP65
- Suitability suitability for use: For 3KD, size 5
- Appearance Color / of the actuating element: Red/Yellow
- Product details product description: INCL DRIVE SHAFT AND COUPLING DRIVER
- ● Product function / can be locked into OFF position: Yes
- ● Product feature / interlock: Yes
- Display version / for switch position indicator: ON-OFF
- Mechanical Design Height: 100 mm
- Width: 250 mm
- Depth: 388 mm
More info
▲ETIM: EC000230 - Door coupling handle for switchgear
| Value | Unit | |
|---|---|---|
| With door interlock (EF001969) | true | |
| Lockable (EF000113) | true | |
| With handle red/yellow (EF001970) | FALSE | |
| With axis extension (EF001968) | - |
| Product | ||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 3KD9515-2 | |||||||||||||||||||||||||||||||||
| Product Description | Accessory for 3KD size 5 door-coupling rotary operating mechanism Complete operating mechanism, yellow/red incl. shaft 300 mm long and clutch holder Can be locked in OFF position | |||||||||||||||||||||||||||||||||
| Product family | Accessories and Spare Parts | |||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM400:Phase Out Started | |||||||||||||||||||||||||||||||||
| PLM Effective Date | Product phase-out since: 31.08.2018 | |||||||||||||||||||||||||||||||||
| Notes | Sucessor:8UD1161-4AF25, design change | |||||||||||||||||||||||||||||||||
| Price data | ||||||||||||||||||||||||||||||||||
| Price Group | 12S | |||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | |||||||||||||||||||||||||||||||||
| Metal Factor | None | |||||||||||||||||||||||||||||||||
| Delivery information | ||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | |||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 15 Day/Days | |||||||||||||||||||||||||||||||||
| Net Weight (kg) | 1,080 Kg | |||||||||||||||||||||||||||||||||
| Product Dimensions (W x L x H) | Not available | |||||||||||||||||||||||||||||||||
| Packaging Dimension | 110,00 x 300,00 x 95,00 | |||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | |||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | |||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | |||||||||||||||||||||||||||||||||
| Additional Product Information | ||||||||||||||||||||||||||||||||||
| EAN | 4011209931770 | |||||||||||||||||||||||||||||||||
| UPC | Not available | |||||||||||||||||||||||||||||||||
| Commodity Code | 85389099 | |||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | LV10.1 | |||||||||||||||||||||||||||||||||
| Product Group | 5378 | |||||||||||||||||||||||||||||||||
| Group Code | P360 | |||||||||||||||||||||||||||||||||
| Country of origin | Germany | |||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 24.11.2009 | |||||||||||||||||||||||||||||||||
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | |||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | No | |||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||||||||||||||
| Classifications | ||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||
