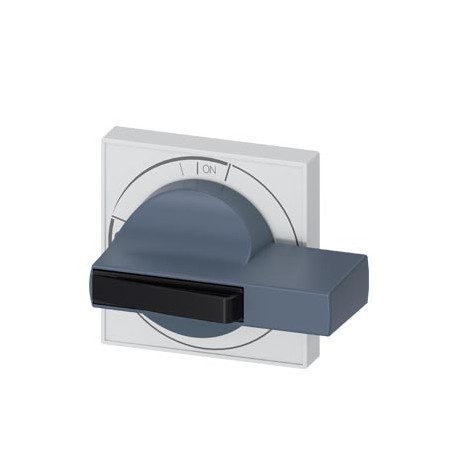

3KD9215-3 SIEMENS Accessory for 3KD size 2 door-coupling rotary operating mechanism Handle, gray without sha..
3KD9215-3
92153
SIEMENS
1 Pcs.
Automation > Door coupling handle for switchgear
3KD Switch-disconnectors, 3KC Power Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A door-coupling rotary operating mechanism handle, specifically the Siemens 3KD9215-3, is an external control accessory used to safely operate and switch disconnectors housed inside industrial electrical enclosures. Such handles allow operators to actuate internal devices from the outside while maintaining enclosure sealing integrity and safety interlocks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- With door interlock (EF001969): true
- Lockable (EF000113): true
- With handle red/yellow (EF001970): FALSE
- Product designation: Accessories for switch disconnectors
- Design of the product: Door-coupling rotary operating mechanism
- Type of the driving mechanism: MANUAL OPERATING MECHANISM
- protection class IP / on the front: IP65
- Suitability suitability for use: For 3KD, size 2
- Appearance Color / of the actuating element: gray
- Product details product description: HANDLE WITHOUT DRIVE SHAFT AND COUPLING DRIVER
- Product function / can be locked into OFF position: Yes
- Product feature / interlock: Yes
- Display version / for switch position indicator: ON-OFF
- Mechanical Design Height: 75 mm
- Width: 99.5 mm
- Depth: 66 mm
More info
▲ETIM: EC000230 - Door coupling handle for switchgear
| Value | Unit | |
|---|---|---|
| With door interlock (EF001969) | true | |
| Lockable (EF000113) | true | |
| With handle red/yellow (EF001970) | FALSE | |
| With axis extension (EF001968) | - |
| Product | ||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 3KD9215-3 | |||||||||||||||||||||||||||||||||
| Product Description | Accessory for 3KD size 2 door-coupling rotary operating mechanism Handle, gray without shaft and coupling Can be locked in OFF position | |||||||||||||||||||||||||||||||||
| Product family | Accessories and Spare Parts | |||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM400:Phase Out Started | |||||||||||||||||||||||||||||||||
| PLM Effective Date | Product phase-out since: 31.08.2018 | |||||||||||||||||||||||||||||||||
| Notes | Sucessor:8UD1771-2AD01, design change | |||||||||||||||||||||||||||||||||
| Price data | ||||||||||||||||||||||||||||||||||
| Price Group | 12S | |||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | |||||||||||||||||||||||||||||||||
| Metal Factor | None | |||||||||||||||||||||||||||||||||
| Delivery information | ||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | |||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 15 Day/Days | |||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,191 Kg | |||||||||||||||||||||||||||||||||
| Product Dimensions (W x L x H) | Not available | |||||||||||||||||||||||||||||||||
| Packaging Dimension | 80,00 x 105,00 x 80,00 | |||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | |||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | |||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | |||||||||||||||||||||||||||||||||
| Additional Product Information | ||||||||||||||||||||||||||||||||||
| EAN | 4011209930933 | |||||||||||||||||||||||||||||||||
| UPC | Not available | |||||||||||||||||||||||||||||||||
| Commodity Code | 85389099 | |||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | LV10.1 | |||||||||||||||||||||||||||||||||
| Product Group | 5378 | |||||||||||||||||||||||||||||||||
| Group Code | P360 | |||||||||||||||||||||||||||||||||
| Country of origin | Germany | |||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 24.11.2009 | |||||||||||||||||||||||||||||||||
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | |||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | No | |||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||||||||||||||
