3KD9115-3 SIEMENS Accessory for 3KD size 1 Door-coupling rotary operating mechanism Handle, gray without sha..
3KD9115-3
91153
SIEMENS
1 Pcs.
Automation > Door coupling handle for switchgear
3KD Switch-disconnectors, 3KC Power Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

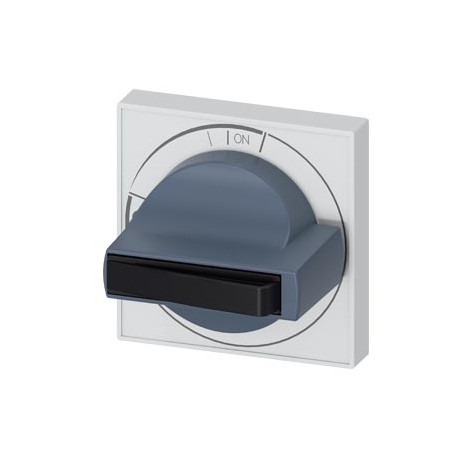

The Siemens 3KD9115-3 accessory for 3KD size 1 serves as a door-coupling rotary operating mechanism handle, facilitating external manual control of enclosed disconnectors. Panel builders utilize these mechanisms to operate internal switches securely from outside the closed cabinet while integrating door interlocking for safety. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- With door interlock (EF001969): true
- Lockable (EF000113): true
- With handle red/yellow (EF001970): FALSE
- Product designation: Accessories for switch disconnectors
- Design of the product: Door-coupling rotary operating mechanism
- Type of the driving mechanism: MANUAL OPERATING MECHANISM
- protection class IP / on the front: IP65
- Suitability suitability for use: For 3KD, size 1
- Appearance Color / of the actuating element: gray
- Product details product description: HANDLE WITHOUT DRIVE SHAFT AND COUPLING DRIVER
- ● Product function / can be locked into OFF position: Yes
- ● Product feature / interlock: Yes
- Display version / for switch position indicator: ON-OFF
- Mechanical Design Height: 75 mm
- Width: 75 mm
- Depth: 66 mm
