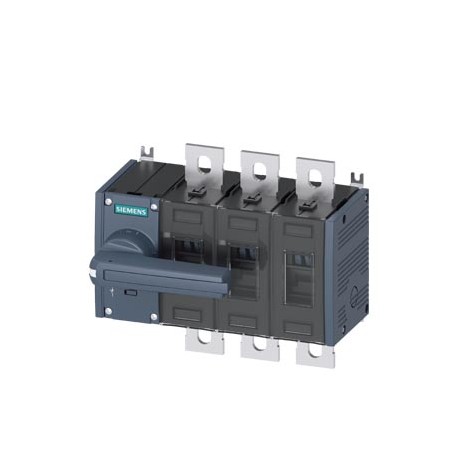

SIEMENS 3KD4232-0PE10-0 3KD4232-0PE10-0 SIEMENS Switch disconnector 400 A, Size 3, 3-pole Front operating mechanism left Complete un.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3KD4232-0PE10-0 SIEMENS Switch disconnector 400 A, Size 3, 3-pole Front operating mechanism left Complete un..

3KD4232-0PE10-0

42320

SIEMENS

1 Pcs.

Switch disconnector 400 A, Size 3, 3-pole Front operating mechanism left Complete unit with direct operating mechanism gray flat terminal SWITCH-DISCONNECTOR 400A, SIZE 3, 3 POLES ACCTO. FRONT TO LEFT. COMPLETE UNIT WITH ACCTO. FULL, GREY FLAT CONNECTION

Connectors > Switch disconnector
3KD Switch-disconnectors, 3KC Power Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Technical data

Switch disconnector 400 A, Size 3, 3-pole Front operating mechanism left Complete unit with direct operating mechanism gray flat terminal
Model
product brand nameSENTRON
product designation3KD switch disconnector
design of the productSwitch
display version / for switch position indicator manual operationON-OFF-TEST
design of the actuating elementLong rotary knob
type of the driving mechanismFront operating mechanism
type of the driving mechanism / motor driveNo
General technical data
number of poles3
type of devicefixed mounting
size of switch disconnector3
mechanical service life (switching cycles) / typical15 000
electrical endurance (switching cycles)
● at AC-23 A / at 690 V1 000
● at DC-23 A / at 440 V1 000
I2t value
● with closed switch / at 1000 V / for combination switch +gG/aM SITOR fuse / maximum239 650 A²·s
● of the fuse / at 500 V / maximum permissible2 150 005 A²·s
● of the gG fuse / at 690 V / maximum permissible1 650 005 A²·s
● of the gG/aM SITOR fuse / at 1000 V / maximum permissible260 000 A²·s
● of the molded case circuit breaker / at 415 V / maximum permissible4 750 000 A²·s
position / of the switch operating mechanismat the left end
overvoltage in percent / relative to the operating voltage / at AC / at 400, 500, 690 V / at 50/60 Hz10 %
overvoltage categoryIV
degree of pollution3
Voltage
operating voltage / with current paths in series
● with degree of pollution 2 / at DC / rated value440 V / 3
● with degree of pollution 3 / at DC / rated value440 V / 3
insulation voltage
● rated value1 000 V
surge voltage resistance / rated value12 kV
Protection class
protection class IPIP00
protection class IP
● with closed switch / with cover or cable lug coverIP20
● on the frontIP00
Dissipation
power loss [W]
● with conventional rated thermal current / per pole14 W
● with conventional rated thermal current / per device42 W
● for rated value of the current / at AC / in hot operating state / per pole14 W
Current
operational current
● at 35 °C / rated value400 A
● at 40 °C / rated value400 A
● at 45 °C / rated value400 A
● at 50 °C / rated value400 A
● at 55 °C / rated value400 A
● at 60 °C / rated value400 A
● at 65 °C / rated value400 A
● at 70 °C / rated value400 A
● at AC / rated value400 A
● at AC-23 A / at 690 V / rated value400 A
● at AC-23 A / at 500 V / rated value400 A
● at AC-23 A / at 400 V / rated value400 A
● at AC-22 A / at 1000 V / maximum400 A
● at AC-22 A / at 690 V / rated value400 A
● at AC-22 A / at 500 V / rated value400 A
● at AC-22 A / at 400 V / rated value400 A
● at AC-20 A / at 1000 V / maximum400 A
● at AC-21 A / at 500 V / rated value400 A
● at AC-21 A / at 690 V / rated value400 A
● at DC-20 A / at 1000 V / maximum400 A / 1
● at DC-23 A / at 440 V / rated value / note400 A / 3
● at DC-23 A / at 220 V / rated value / note400 A / 2
● at DC-22 A / at 440 V / rated value / note400 A / 3
● at DC-22 A / at 220 V / rated value / note400 A / 2
● at DC-21 A / at 440 V / rated value / note400 A / 3
● at DC-21 A / at 220 V / rated value400 A / 2
● at DC-21 B / at 750 V / rated value / maximum400 A / 3
continuous current / of upstream fuse / at 500 V and 690 V / rated value500 A
continuous current / of upstream fuse / at 1000 V / rated value500 A
continuous current / of upstream molded case circuit breaker / at 415 V / rated value630 A
operational current / at DC / rated value400 A
let-through current / of the fuse / at 500 V / maximum permissible54 800 A
let-through current / of the gG fuse / at 690 V / maximum permissible45 200 A
let-through current / of the gG/aM SITOR fuse / at 1000 V / maximum permissible21 500 A
let-through current / of the molded case circuit breaker / at 415 V / maximum permissible43 500 A
Main circuit
operating power
● at AC-23 A / at 500 V / rated value250 kW
operational current / rated value400 A
Auxiliary circuit
number of connected NC contacts / for auxiliary contacts0
number of connected NO contacts / for auxiliary contacts0
number of connected CO contacts / for auxiliary contacts0
number of CO contacts / for auxiliary contacts0
number of NC contacts / for auxiliary contacts6
number of NO contacts / for auxiliary contacts6
Suitability
suitability for use
● main switchYes
● switch disconnectorYes
● EMERGENCY OFF switchNo
● safety switchYes
● maintenance/repair switchYes
Product details
product feature / interlockYes
product component
● trip indicatorNo
● voltage triggerNo
● undervoltage releaseNo
● undervoltage release with leading contactNo
product extension / auxiliary switchYes
product extension / optional
● motor driveNo
● voltage triggerNo
Short circuit
short-time withstand current (Icw) / at 1000 V AC/440 V DC / limited to 1 s / rated value13 kA
short-circuit current making capacity (Icm) / for switch disconnector
● at 1000 V AC / without fuse link / rated value / minimum36 kA
● at DC 440 V / without fuse link / rated value / minimum36 kA
● without fuse link / rated value / minimum36 kA
conditional short-circuit current / with line-side fuse protection
● at 415 V / by molded case circuit breaker / rated value65 kA
● at 500 V / by gG fuse / rated value100 kA
● at 690 V / by gG fuse / rated value100 kA
Connections
type of connectable conductor cross-sections / for aluminum conductor
● stranded / with lug1x (25 ... 240 mm²), 2x (25 ... 120 mm²)
type of connectable conductor cross-sections
● for copper busbar'1 x (30 x 10 mm²)
type of connectable conductor cross-sections / for copper conductor
● stranded / with lug / according to DIN 462351x (16 ... 185 mm²), 2x (16 ...150 mm²)
type of electrical connection / for main current circuitflat connector
Mechanical Design
height164 mm
width190 mm
depth130.5 mm
fastening methodscrew fixing
fastening method
● 4-hole front mountingNo
● front mounting with central attachmentNo
● rail mountingNo
mounting positionany
net weight3 000 g
Environmental conditions
ambient temperature / during operation
● minimum-25 °C
● maximum70 °C
ambient temperature / during storage
● minimum-50 °C
● maximum80 °C

Downloads and manuals

General Product ApprovalDeclaration of Conformity

CCC

Confirmation

VDE

Miscellaneous

EAC

UK Declaration of Conformity

Declaration of ConformityMarine / Shippingother

EC/EU-Declaration of Conformity

LR (Lloyds Register)

DNV-GL

Miscellaneous

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, ...)
CAx-Online-Generator
Tender specifications
Date
5/14/2022


Additional data

Product
Article Number (Market Facing Number)3KD4232-0PE10-0
Product DescriptionSwitch disconnector 400 A, Size 3, 3-pole Front operating mechanism left Complete unit with direct operating mechanism gray flat terminal
Product familyBasic Devices
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group12S / 1CL
Surcharge for Raw MaterialsNone
Metal FactorLOA-----
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works2 Day/Days
Net Weight (kg)3,000 Kg
Packaging Dimension187,00 x 207,00 x 157,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4001869472904
UPCNot available
Commodity Code85365080
LKZ_FDB/ CatalogIDLV10.1
Product Group5378
Group CodeP360
Country of originChina
Compliance with the substance restrictions according to RoHS directiveSince: 24.11.2009
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-37-14-03
eClass7.127-37-14-03
eClass827-37-14-03
eClass927-37-14-03
eClass9.127-37-14-03
ETIM5EC000216
ETIM6EC000216
ETIM7EC000216
ETIM8EC000216
UNSPSC1539-12-22-33

ETIM data

ETIM: EC000216 - Switch disconnector

Value Unit
Number of switches (EF005586) -
Rated operating voltage (EF001435) -V
Rated permanent current at AC-23, 400 V (EF011777) -A
Degree of protection (NEMA) (EF011959) -
Version as main switch (EF006981) true
Version as maintenance-/service switch (EF006986) true
Version as safety switch (EF006985) true
Version as emergency stop installation (EF006959) false
Version as reversing switch (EF009408) false
Max. rated operation voltage Ue AC (EF007355) 690V
Rated permanent current Iu (EF001389) 400.0A
Rated permanent current at AC-21, 400 V (EF009165) 400A
Rated operation power at AC-23, 400 V (EF007027) 200.0kW
Switching power at 400 V (EF009166) 220.0kW
Number of poles (EF001391) 3
Number of auxiliary contacts as normally closed contact (EF001377) 6
Number of auxiliary contacts as normally open contact (EF001376) 6
Number of auxiliary contacts as change-over contact (EF003531) 0
Motor drive optional (EF007386) false
Motor drive integrated (EF006697) false
Voltage release optional (EF007491) false
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for floor mounting (EF007243) FALSE
Suitable for front mounting 4-hole (EF007247) false
Suitable for front mounting centre (EF007248) false
Suitable for distribution board installation (EF007262) false
Suitable for intermediate mounting (EF007264) false
Colour control element (EF007167) Grey
Type of control element (EF006976) Long turning handle
Interlockable (EF006281) true
Type of electrical connection of main circuit (EF006819) Other
Degree of protection (IP), front side (EF003118) IP00
Conditioned rated short-circuit current Iq (EF001444) -kA
Rated operation power at AC-3, 400 V (EF001364) -kW
Rated short-time withstand current lcw (EF007050) -kA
