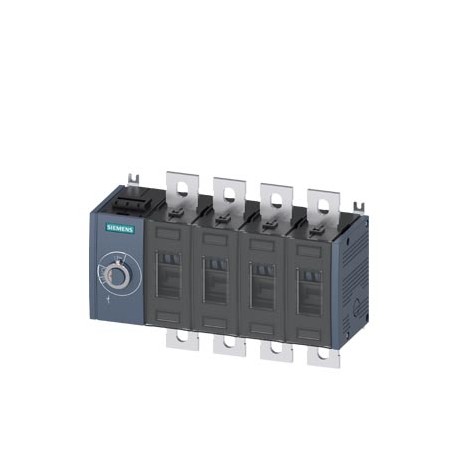

SIEMENS 3KD3644-0NE10-0 3KD3644-0NE10-0 SIEMENS Switch disconnector 200 A, Size 2, 4-pole Lateral operating mechanism left Basic uni.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3KD3644-0NE10-0 SIEMENS Switch disconnector 200 A, Size 2, 4-pole Lateral operating mechanism left Basic uni..

3KD3644-0NE10-0

36440

SIEMENS

1 Pcs.

Switch disconnector 200 A, Size 2, 4-pole Lateral operating mechanism left Basic unit without handle flat terminal incl. phase barriers SWITCH-DISCONNECTOR 200A, SIZE 2, 4 POLES ACCTO. SIDE TO LEFT. BASE UNIT WITHOUT LEVER FLAT CONNECTIONS INCL. SEPARATOR WALLS PHASES

Connectors > Switch disconnector
3KD Switch-disconnectors, 3KC Power Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Technical data

Switch disconnector 200 A, Size 2, 4-pole Lateral operating mechanism left Basic unit without handle flat terminal incl. phase barriers
Model
product brand nameSENTRON
product designation3KD switch disconnector
design of the productSwitch
display version / for switch position indicator door-coupling rotary operating mechanismON-OFF
design of the actuating elementWithout handle
type of the driving mechanismSide operating mechanism
type of the driving mechanism / motor driveNo
General technical data
number of poles4
type of devicefixed mounting
size of switch disconnector2
mechanical service life (switching cycles) / typical15 000
electrical endurance (switching cycles)
● at AC-23 A / at 690 V1 500
● at DC-23 A / at 440 V1 500
I2t value
● with closed switch / at 1000 V / for combination switch +gG/aM SITOR fuse / maximum19 815 A²·s
● of the fuse / at 500 V / maximum permissible780 005 A²·s
● of the gG fuse / at 690 V / maximum permissible525 005 A²·s
● of the gG/aM SITOR fuse / at 1000 V / maximum permissible48 000 A²·s
● of the molded case circuit breaker / at 415 V / maximum permissible1 750 000 A²·s
position / of the switch operating mechanismat the left end
overvoltage in percent / relative to the operating voltage / at AC / at 400, 500, 690 V / at 50/60 Hz10 %
overvoltage categoryIII
degree of pollution3
Voltage
operating voltage / with current paths in series
● with degree of pollution 2 / at DC / rated value440 V / 3
● with degree of pollution 3 / at DC / rated value440 V / 3
insulation voltage
● rated value1 000 V
surge voltage resistance / rated value8 kV
Protection class
protection class IPIP00
protection class IP
● with closed switch / with cover or cable lug coverIP20
● on the frontIP00
Dissipation
power loss [W]
● with conventional rated thermal current / per pole6.4 W
● with conventional rated thermal current / per device25.6 W
● for rated value of the current / at AC / in hot operating state / per pole6.4 W
Current
operational current
● at 35 °C / rated value200 A
● at 40 °C / rated value200 A
● at 45 °C / rated value200 A
● at 50 °C / rated value200 A
● at 55 °C / rated value200 A
● at 60 °C / rated value200 A
● at 65 °C / rated value200 A
● at 70 °C / rated value200 A
● at AC / rated value200 A
● at AC-23 A / at 690 V / rated value125 A
● at AC-23 A / at 500 V / rated value160 A
● at AC-23 A / at 400 V / rated value160 A
● at AC-22 A / at 1000 V / maximum200 A
● at AC-22 A / at 690 V / rated value200 A
● at AC-22 A / at 500 V / rated value200 A
● at AC-22 A / at 400 V / rated value200 A
● at AC-20 A / at 1000 V / maximum200 A
● at AC-21 A / at 500 V / rated value200 A
● at AC-21 A / at 690 V / rated value200 A
continuous current / of upstream fuse / at 500 V and 690 V / rated value250 A
continuous current / of upstream fuse / at 1000 V / rated value250 A
continuous current / of upstream molded case circuit breaker / at 415 V / rated value200 A
operational current / at DC / rated value200 A
let-through current / of the fuse / at 500 V / maximum permissible25 700 A
let-through current / of the gG fuse / at 690 V / maximum permissible29 500 A
let-through current / of the aM fuse / at 690 V / maximum permissible32 900 A
let-through current / of the gG/aM SITOR fuse / at 1000 V / maximum permissible12 500 A
let-through current / of the molded case circuit breaker / at 415 V / maximum permissible28 000 A
short-time withstand current (Icw)
● at 400 V AC / limited to 0.15 s / rated value15 kA
Main circuit
operating power
● at AC-23 A / at 500 V / rated value110 kW
operational current / rated value200 A
Auxiliary circuit
number of connected NC contacts / for auxiliary contacts0
number of connected NO contacts / for auxiliary contacts0
number of connected CO contacts / for auxiliary contacts0
number of CO contacts / for auxiliary contacts3
number of NC contacts / for auxiliary contacts0
number of NO contacts / for auxiliary contacts0
Suitability
suitability for use
● main switchYes
● switch disconnectorYes
● EMERGENCY OFF switchYes
● safety switchYes
● maintenance/repair switchYes
Product details
product feature / interlockNo
product component
● trip indicatorNo
● voltage triggerNo
● undervoltage releaseNo
● undervoltage release with leading contactNo
product extension / auxiliary switchYes
product extension / optional
● motor driveNo
● voltage triggerNo
Short circuit
short-time withstand current (Icw) / at 1000 V AC/440 V DC / limited to 1 s / rated value4 kA
short-circuit current making capacity (Icm) / for switch disconnector
● at 400 V AC / without fuse link / rated value / minimum30 kA
● at 1000 V AC / without fuse link / rated value / minimum12 kA
● at DC 440 V / without fuse link / rated value / minimum12 kA
● without fuse link / rated value / minimum12 kA
conditional short-circuit current / with line-side fuse protection
● at 415 V / by molded case circuit breaker / rated value65 kA
● at 500 V / by gG fuse / rated value100 kA
● at 690 V / by gG fuse / rated value100 kA
Connections
type of connectable conductor cross-sections / for aluminum conductor
● stranded / with lug1x (10 ... 70 mm²)
type of connectable conductor cross-sections
● for copper busbar'1x (20x3 mm²)
type of electrical connection / for main current circuitflat connector
Mechanical Design
height126 mm
width157.3 mm
depth69.5 mm
fastening methodScrew fixing and standard rail mounting 35 mm
fastening method
● 4-hole front mountingNo
● front mounting with central attachmentNo
● rail mountingYes
mounting positionany
net weight1 349 g
Environmental conditions
ambient temperature / during operation
● minimum-25 °C
● maximum70 °C
ambient temperature / during storage
● minimum-50 °C
● maximum80 °C

Downloads and manuals

General Product ApprovalDeclaration of Conformity

CCC

Confirmation

VDE

Miscellaneous

EAC

EC/EU-Declaration of Conformity

Declaration of ConformityMarine / Shippingother

UK Declaration of Conformity

LR (Lloyds Register)

DNV-GL

Miscellaneous

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, ...)
CAx-Online-Generator
Tender specifications
Date
5/17/2022


Additional data

Product
Article Number (Market Facing Number)3KD3644-0NE10-0
Product DescriptionSwitch disconnector 200 A, Size 2, 4-pole Lateral operating mechanism left Basic unit without handle flat terminal incl. phase barriers
Product familyBasic Devices
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group12S / 1CL
Surcharge for Raw MaterialsNone
Metal FactorLOA-----
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works15 Day/Days
Net Weight (kg)1,349 Kg
Packaging Dimension157,30 x 69,50 x 126,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4001869515502
UPCNot available
Commodity Code85365080
LKZ_FDB/ CatalogIDLV10.1
Product Group5378
Group CodeP360
Country of originChina
Compliance with the substance restrictions according to RoHS directiveSince: 24.11.2009
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-37-14-03
eClass7.127-37-14-03
eClass827-37-14-03
eClass927-37-14-03
eClass9.127-37-14-03
ETIM5EC000216
ETIM6EC000216
ETIM7EC000216
ETIM8EC000216
UNSPSC1439-12-22-05
UNSPSC1539-12-22-33

ETIM data

ETIM: EC000216 - Switch disconnector

Value Unit
Rated operating voltage (EF001435) -V
Rated permanent current at AC-23, 400 V (EF011777) -A
Number of switches (EF005586) -
Degree of protection (NEMA) (EF011959) -
Version as main switch (EF006981) true
Version as maintenance-/service switch (EF006986) true
Version as safety switch (EF006985) true
Version as emergency stop installation (EF006959) true
Version as reversing switch (EF009408) false
Max. rated operation voltage Ue AC (EF007355) 690V
Rated permanent current Iu (EF001389) 200.0A
Rated permanent current at AC-21, 400 V (EF009165) 200A
Rated operation power at AC-23, 400 V (EF007027) 90.0kW
Switching power at 400 V (EF009166) 90.0kW
Number of poles (EF001391) 4
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 3
Motor drive optional (EF007386) false
Motor drive integrated (EF006697) false
Voltage release optional (EF007491) false
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for floor mounting (EF007243) FALSE
Suitable for front mounting 4-hole (EF007247) false
Suitable for front mounting centre (EF007248) false
Suitable for distribution board installation (EF007262) true
Suitable for intermediate mounting (EF007264) true
Colour control element (EF007167) Other
Type of control element (EF006976) None
Interlockable (EF006281) false
Type of electrical connection of main circuit (EF006819) Other
Degree of protection (IP), front side (EF003118) IP00
Conditioned rated short-circuit current Iq (EF001444) -kA
Rated operation power at AC-3, 400 V (EF001364) -kW
Rated short-time withstand current lcw (EF007050) -kA
