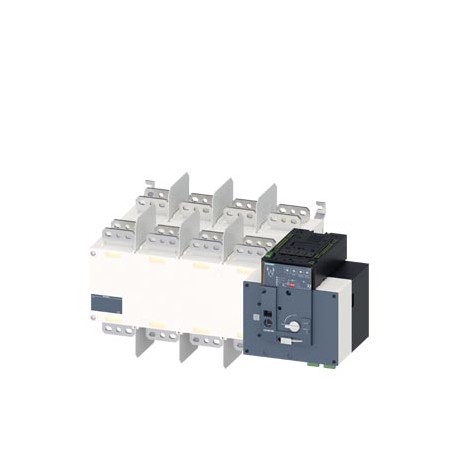

SENTRON, ATE, transfer switching equipment 3KC, automatically, ATSE, 4- pole, Iu: 2000 A, Ue AC: 415 V, Ie at AC-33 B at 415 V: 1250 A, screw mounting, motorized operating mechanism, at the right end, long handle, busbar connection TRANSF SWITCH. AUTOMATIC ATSE, 2000A, 4 POLES FRONT DRIVE BASE UNIT WITH LEVER 2X POWER 230VAC FLAT CONNECTIONS. Cancelations and returns limited. Consult conditions.

Connectors > Switch disconnector
3KD Switch-disconnectors, 3KC Power Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

ETIM: EC000216 - Switch disconnector

Value Unit
Rated permanent current at AC-23, 400 V (EF011777) -A
Degree of protection (NEMA) (EF011959) -
Version as main switch (EF006981) true
Version as maintenance-/service switch (EF006986) true
Version as safety switch (EF006985) true
Version as emergency stop installation (EF006959) false
Version as reversing switch (EF009408) -
Number of switches (EF005586) -
Max. rated operation voltage Ue AC (EF007355) 415V
Rated operating voltage (EF001435) ['166.0', '332.0']V
Rated permanent current Iu (EF001389) 2000.0A
Rated permanent current at AC-21, 400 V (EF009165) -A
Rated short-time withstand current lcw (EF007050) 50.0kA
Number of poles (EF001391) 4
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Motor drive optional (EF007386) false
Motor drive integrated (EF006697) true
Voltage release optional (EF007491) false
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for floor mounting (EF007243) FALSE
Suitable for front mounting 4-hole (EF007247) false
Suitable for front mounting centre (EF007248) false
Suitable for distribution board installation (EF007262) false
Suitable for intermediate mounting (EF007264) false
Colour control element (EF007167) Black
Type of control element (EF006976) Long turning handle
Interlockable (EF006281) true
Type of electrical connection of main circuit (EF006819) Rail connection
Degree of protection (IP), front side (EF003118) IP00
Switching power at 400 V (EF009166) -kW
Conditioned rated short-circuit current Iq (EF001444) -kA
Rated operation power at AC-3, 400 V (EF001364) -kW
Rated operation power at AC-23, 400 V (EF007027) -kW


SENTRON, ATE, transfer switching equipment 3KC, automatically, ATSE, 4- pole, Iu: 2000 A, Ue AC: 415 V, Ie at AC-33 B at 415 V: 1250 A, screw mounting, motorized operating mechanism, at the right end, long handle, busbar connection
Model
product brand nameSENTRON
Product familyATE
Product designation3KC transfer switching equipment
Design of the productautomatic
Display version / for switch position indicator manual operationI - O - II
Design of the operating mechanismLong rotary knob
Design of handleHandle
Type of the driving mechanismmotorized operating mechanism
Type of the driving mechanism / motor driveYes
General technical data
number of poles4
Type of devicefixed mounting
Pulse duration / minimum0.06 s
Mechanical service life (switching cycles) / for function sequence O-I-O / typical1 500
Position / of the switch operating mechanismat the right end
overvoltage categoryIII
Degree of pollution3
Insulation voltage
● rated value1 000 V
Supply voltage
Operating current / at AC / rated value2 000 A
Supply voltage / at AC
● minimum166 V
● maximum332 V
Operating voltage
● at AC / at 50/60 Hz / rated value415 V
Protection class
Protection class IPIP00
● Protection class IP / with closed switch / with cover or cable lug coverIP20
● protection class IP / on the frontIP00
Dissipation
Power loss [W]
● with conventional rated thermal current / per pole178 W
● with conventional rated thermal current / per device712 W
● for rated value of the current / at AC / in hot operating state / per pole178 W
Operating current
● at AC-21 B / at 690 V / rated value2 000 A
● at AC-21 B / at 500 V / rated value2 000 A
● at AC-21 B / at 415 V / rated value2 000 A
● at AC-22 B / at 415 V / rated value2 000 A
● at AC-23 B / at 415 V / rated value1 600 A
● at AC-31 B / at 415 V / rated value2 000 A
● at AC-32 B / at 415 V / rated value2 000 A
● at AC-33 B / at 415 V / rated value1 250 A
● at AC-33 iB / at 415 V / rated value1 600 A
● at AC / at 230 V / Rated value1.5 A
Continuous current
● rated value2 000 A
● at 40 °C / rated value2 000 A
● at 50 °C / rated value2 000 A
● at 60 °C / rated value2 000 A
● at 70 °C / rated value1 750 A
Main circuit
Operating frequency / rated value
● minimum45 Hz
● maximum65 Hz
Operating current / rated value2 000 A
Auxiliary circuit
Number of connected NC contacts / for auxiliary contacts0
Number of connected NO contacts / for auxiliary contacts3
Number of connected CO contacts / for auxiliary contacts4
Number of CO contacts / for auxiliary contacts0
Number of NC contacts / for auxiliary contacts0
Number of NO contacts / for auxiliary contacts0
Suitability for use
● Main switchYes
● switch disconnectorYes
● EMERGENCY OFF switchNo
● safety switchYes
● maintenance/repair switchYes
Product feature / interlockYes
Product extension / Auxiliary switchNo
Product extension / optional
● motor driveNo
● Voltage triggerNo
Short circuit
Short-circuit current making capacity (Icm) / for switch disconnector
● at AC 415 V / without fuse link / acc. to IEC 60947-3 / rated value / minimum105 kA
● at AC 415 V / without fuse link / acc. to IEC 60947-6-1 / rated value / minimum105 kA
number of digital inputs11
Relay design2 relays: 2NO, 2A 250 VAC or 2A 24 VDC; 1 relay: 1CO, 2A 250 VAC or 2A 24 VDC
Design of the switching inputConnected with control terminal
Input current / at digital input / with signal <0> / maximum2.1 mA
Input delay time0.046 s
Measuring procedureTrue RMS
Input impedance / between L and L12 MΩ
Voltage measuring range / at the measurement inputs
● between L and L / minimum30 V
● between L and L / maximum600 V
● between L and N / minimum30 V
● between L and N / maximum332 V
Relative measurement deviation1 %
Number of monitored phases3
Connections
Type of connectable conductor cross-sections
● for copper busbar3x100x5
● type of electrical connection / of the inputs and outputsRemovable/insertable
● Type of electrical connection / for main current circuitbusbar connection
Mechanical Design
Height380 mm
Width716 mm
Depth569 mm
Mounting typescrew fixing
● Mounting type / front mounting with 4-hole attachmentNo
● Mounting type / front mounting with central attachmentNo
● mounting type / rail mountingNo
net weight62 700 g
Environmental conditions
Ambient temperature / during operation
● minimum-20 °C
● maximum70 °C
Ambient temperature / during storage
● minimum-40 °C
● maximum70 °C
Certificates
● reference code / acc. to DIN EN 61346-2Q
● Reference code / acc. to DIN EN 81346-2Q
General Product ApprovalDeclaration of Conformity

CCC

Miscellaneous

EC/EU-Declaration of Conformity

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, ...)
CAx-Online-Generator
Tender specifications


Product
Article Number (Market Facing Number)3KC8456-0JA22-0GA3
Product DescriptionSENTRON, ATE, transfer switching equipment 3KC, automatically, ATSE, 4- pole, Iu: 2000 A, Ue AC: 415 V, Ie at AC-33 B at 415 V: 1250 A, screw mounting, motorized operating mechanism, at the right end, long handle, busbar connection
Product familyBasic Devices
Product Lifecycle (PLM)PM300:Active Product
Price data
Price Group12S
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works5 Day/Days
Net Weight (kg)77,500 Kg
Product Dimensions (W x L x H)Not available
Packaging Dimension600,00 x 800,00 x 730,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4001869532967
UPCNot available
Commodity Code85365080
LKZ_FDB/ CatalogIDLV10
Product Group5380
Group CodeP360
Country of originFrance
Compliance with the substance restrictions according to RoHS directiveSince: 30.04.2016
Product classB: return restricted, please contact your Siemens partner/contact
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
