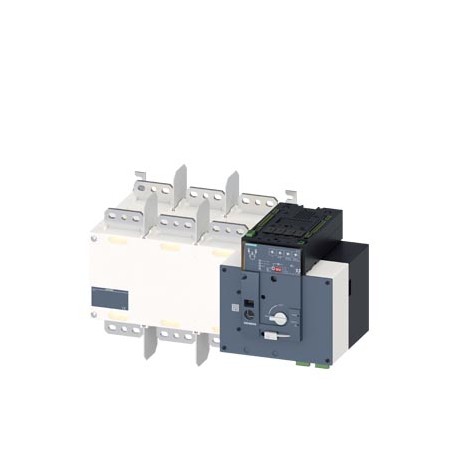

SIEMENS 3KC8354-0HA22-0GA3 3KC8354-0HA22-0GA3 SIEMENS SENTRON, ATE, transfer switching equipment 3KC, automatically, ATSE, 3- pole, Iu:.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3KC8354-0HA22-0GA3 SIEMENS SENTRON, ATE, transfer switching equipment 3KC, automatically, ATSE, 3- pole, Iu:..

3KC8354-0HA22-0GA3

83540

SIEMENS

1 Pcs.

SENTRON, ATE, transfer switching equipment 3KC, automatically, ATSE, 3- pole, Iu: 1600 A, Ue AC: 415 V, Ie at AC-33 B at 415 V: 1000 A, Ie at AC-23 A at 690 V: 800 A, screw mounting, motorized operating mechanism, at the right end, long handle, busbar connection TRANSF SWITCH. AUTOMATIC ATSE, 1600A, 3 POLES FRONT DRIVE BASE UNIT WITH LEVER 2X POWER 230VAC FLAT CONNECTIONS. Manufactured to order. Non-Cancelable Non-Returnable.

Connectors > Switch disconnector
3KD Switch-disconnectors, 3KC Power Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Product
Article Number (Market Facing Number)3KC8354-0HA22-0GA3
Product DescriptionSENTRON, ATE, transfer switching equipment 3KC, automatically, ATSE, 3- pole, Iu: 1600 A, Ue AC: 415 V, Ie at AC-33 B at 415 V: 1000 A, Ie at AC-23 A at 690 V: 800 A, screw mounting, motorized operating mechanism, at the right end, long handle, busbar connection
Product familyBasic Devices
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group12S / 53P
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works150 Day/Days
Net Weight (kg)45,500 Kg
Packaging Dimension600,00 x 800,00 x 730,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4001869532936
UPCNot available
Commodity Code85365080
LKZ_FDB/ CatalogIDLV10
Product Group5380
Group CodeP360
Country of originFrance
Compliance with the substance restrictions according to RoHS directiveSince: 30.04.2016
Product classC: products manufactured / produced to order, which cannot be reused or re-utilized or be returned against credit.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
SCIP number
Classifications
VersionClassification
eClass1227-37-14-03
eClass1427-37-14-03
eClass627-37-14-03
eClass7.127-37-14-03
eClass827-37-14-03
eClass927-37-14-03
eClass9.127-37-14-03
ETIM10EC000216
ETIM7EC000216
ETIM8EC000216
ETIM9EC000216
UNSPSC1539-12-22-33

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
