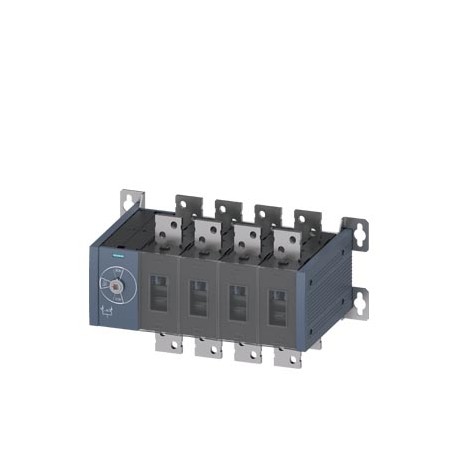

SIEMENS 3KC0452-0RE00-0AA0 3KC0452-0RE00-0AA0 SIEMENS SENTRON, transfer switching equipment 3KC, manually operated, MTSE, size: 5, 4-po.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3KC0452-0RE00-0AA0 SIEMENS SENTRON, transfer switching equipment 3KC, manually operated, MTSE, size: 5, 4-po..

3KC0452-0RE00-0AA0

04520

SIEMENS

1 Pcs.

SENTRON, transfer switching equipment 3KC, manually operated, MTSE, size: 5, 4-pole, Iu: 1250 A, Ue AC: 415 V, Ie at AC-33 B at 415 V: 800 A, Ie at AC-23 A at 690 V: 800 A, screw mounting, front operating mechanism, at the left end, without handle, busbar connection TRANSF SWITCH. MANUAL MTSE, TAM. 5, 1250A, 4 POLES FRONT ACCONAMIENTO BASE UNIT WITHOUT FLAT CONNECTION HANDLE. Cancelations and returns limited. Consult conditions.

Connectors > Switch disconnector
3KD Switch-disconnectors, 3KC Power Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

ETIM: EC000216 - Switch disconnector

Value Unit
Colour control element (EF007167) -
Rated permanent current at AC-23, 400 V (EF011777) -A
Version as main switch (EF006981) true
Version as maintenance-/service switch (EF006986) true
Version as safety switch (EF006985) true
Version as emergency stop installation (EF006959) true
Version as reversing switch (EF009408) -
Number of switches (EF005586) -
Max. rated operation voltage Ue AC (EF007355) 415V
Rated permanent current Iu (EF001389) 1250.0A
Rated permanent current at AC-21, 400 V (EF009165) 1250A
Rated short-time withstand current lcw (EF007050) 50.0kA
Rated operation power at AC-23, 400 V (EF007027) 400.0kW
Number of poles (EF001391) 4
Number of auxiliary contacts as normally closed contact (EF001377) 16
Number of auxiliary contacts as normally open contact (EF001376) 16
Number of auxiliary contacts as change-over contact (EF003531) 0
Motor drive optional (EF007386) false
Motor drive integrated (EF006697) false
Voltage release optional (EF007491) false
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for floor mounting (EF007243) FALSE
Suitable for front mounting 4-hole (EF007247) false
Suitable for front mounting centre (EF007248) false
Suitable for distribution board installation (EF007262) false
Suitable for intermediate mounting (EF007264) false
Type of control element (EF006976) None
Interlockable (EF006281) false
Type of electrical connection of main circuit (EF006819) Rail connection
Degree of protection (IP), front side (EF003118) IP00
Degree of protection (NEMA) (EF011959) Other
Rated operating voltage (EF001435) -V
Switching power at 400 V (EF009166) -kW
Conditioned rated short-circuit current Iq (EF001444) -kA
Rated operation power at AC-3, 400 V (EF001364) -kW


SENTRON, transfer switching equipment 3KC, manually operated, MTSE, size: 5, 4-pole, Iu: 1250 A, Ue AC: 415 V, Ie at AC-33 B at 415 V: 800 A, Ie at AC-23 A at 690 V: 800 A, screw mounting, front operating mechanism, at the left end, without handle, busbar connection
Model
product brand nameSENTRON
Product designation3KC transfer switching equipment
Design of the productmanually operated
Display version / for switch position indicator door-coupling rotary operating mechanismI ON- O OFF- II ON
Design of the operating mechanismWithout handle
Design of handlewithout
Type of the driving mechanismFront operating mechanism
Type of the driving mechanism / motor driveNo
General technical data
number of poles4
Type of devicefixed mounting
Size of switch disconnector5
I2t value
● with closed switch / for combination switch + fuse / at 500 V / maximum25 960 000 A²·s
● of the fuse / at 415 V / maximum permissible34 800 005 A²·s
● of the fuse / at 500 V / maximum permissible34 800 005 A²·s
● with closed switch / for combination switch + fuse / at 415 V / maximum25 960 000 A²·s
Mechanical service life (switching cycles) / for function sequence O-I-O / typical6 000
Position / of the switch operating mechanismat the left end
overvoltage categoryIV
Degree of pollution3
Insulation voltage
● rated value1 000 V
Supply voltage
Operating current / at AC / rated value1 250 A
Operating voltage
● at AC / at 50/60 Hz / rated value415 V
Protection class
Protection class IPIP00
● Protection class IP / with closed switch / with cover or cable lug coverIP20
● protection class IP / on the frontIP00
Dissipation
Power loss [W]
● with conventional rated thermal current / per pole70 W
● with conventional rated thermal current / per device280 W
● for rated value of the current / at AC / in hot operating state / per pole70 W
Operating current
● at AC-23 A / at 690 V / rated value800 A
● at AC-23 A / at 500 V / rated value800 A
● at AC-22 A / at 690 V / rated value1 250 A
● at AC-22 A / at 500 V / rated value1 250 A
● at AC-21 / at 690 V / rated value1 250 A
● at AC-21 / at 500 V / rated value1 250 A
● at AC-21 A / at 415 V / rated value1 250 A
● at AC-22 A / at 415 V / rated value1 250 A
● at AC-23 A / at 415 V / rated value800 A
● at AC-31 B / at 415 V / rated value1 250 A
● at AC-32 B / at 415 V / rated value1 250 A
● at AC-33 B / at 415 V / rated value800 A
● at AC-33 iB / at 415 V / rated value1 250 A
● at AC-35 B / at 400 V / rated value1 250 A
Continuous current
● rated value1 250 A
● at 40 °C / rated value1 250 A
● at 45 °C / rated value1 250 A
● at 50 °C / rated value1 250 A
● at 55 °C / rated value1 250 A
● at 60 °C / rated value1 250 A
● at 65 °C / rated value1 250 A
● at 70 °C / rated value1 250 A
Operating current / of upstream fuse / rated value1 250 A
let-through current / of the fuse / at 500 V / maximum permissible112 656 A
let-through current / with closed switch
● for combination switch + fuse / at 500 V / maximum permissible103 400 A
Main circuit
Operating power
● at AC-23 A / at 400 V / at 50/60 Hz / rated value400 kW
● at AC-23 A / at 500 V / rated value560 kW
● at AC-23 A / at 690 V / at 50/60 Hz / rated value800 kW
Operating current / rated value1 250 A
Auxiliary circuit
Number of connected NC contacts / for auxiliary contacts0
Number of connected NO contacts / for auxiliary contacts0
Number of connected CO contacts / for auxiliary contacts0
Number of CO contacts / for auxiliary contacts0
Number of NC contacts / for auxiliary contacts16
Number of NO contacts / for auxiliary contacts16
Suitability for use
● Main switchYes
● switch disconnectorYes
● EMERGENCY OFF switchYes
● safety switchYes
● maintenance/repair switchYes
Product feature / interlockNo
Product extension / Auxiliary switchYes
Product extension / optional
● motor driveNo
● Voltage triggerNo
Short circuit
Short-circuit current making capacity (Icm) / for switch disconnector
● at AC 415 V / without fuse link / acc. to IEC 60947-6-1 / rated value / minimum105 kA
● at AC 690 V / without fuse link / acc. to IEC 60947-3 / rated value / minimum105 kA
Conditional short-circuit current / with line-side fuse protection
● at 415 V / by gG fuse / acc. to IEC 60947-6-1 / rated value80 kA
● at 415 V / by gG fuse / rated value80 kA
● at 500 V / by gG fuse / acc. to IEC 60947-3 / rated value80 kA
Connections
Type of connectable conductor cross-sections / for aluminum conductor
● stranded / with lug1x (120 ... 300 mm²), 2x (95 ... 300 mm²)
Type of connectable conductor cross-sections
● with combination of Al conductor+switch680 A / 2 x 300 mm²
● for copper busbar2x (60x10 mm²)
Type of connectable conductor cross-sections / for copper conductor
● stranded / with lug / acc. to DIN 462341x (120 ... 240 mm²), 2x (95 ... 240 mm²)
● stranded / with lug / acc. to DIN 462351x (120 ... 240 mm²), 2x (95 ... 240 mm²)
● Type of electrical connection / for main current circuitbusbar connection
Mechanical Design
Height310 mm
Width565 mm
Depth311.5 mm
Mounting typescrew fixing
● Mounting type / front mounting with 4-hole attachmentNo
● Mounting type / front mounting with central attachmentNo
● mounting type / rail mountingNo
net weight39 100 g
Environmental conditions
Ambient temperature / during operation
● minimum-25 °C
● maximum70 °C
Ambient temperature / during storage
● minimum-50 °C
● maximum80 °C
Certificates
● reference code / acc. to DIN EN 61346-2Q
● Reference code / acc. to DIN EN 81346-2Q
General Product ApprovalDeclaration of ConformityShipping Approval

CCC

VDE

Miscellaneous

EC/EU-Declaration of Conformity

LR (Lloyds Register)

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, ...)
CAx-Online-Generator
Tender specifications


Product
Article Number (Market Facing Number)3KC0452-0RE00-0AA0
Product DescriptionSENTRON, transfer switching equipment 3KC, manually operated, MTSE, size: 5, 4-pole, Iu: 1250 A, Ue AC: 415 V, Ie at AC-33 B at 415 V: 800 A, Ie at AC-23 A at 690 V: 800 A, screw mounting, front operating mechanism, at the left end, without handle, busbar connection
Product familyBasic Devices
Product Lifecycle (PLM)PM300:Active Product
Price data
Price Group12S
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works5 Day/Days
Net Weight (kg)54,500 Kg
Product Dimensions (W x L x H)Not available
Packaging Dimension310,00 x 565,00 x 312,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4001869537672
UPCNot available
Commodity Code85365080
LKZ_FDB/ CatalogIDLV10
Product Group5380
Group CodeP360
Country of originChina
Compliance with the substance restrictions according to RoHS directiveSince: 21.01.2016
Product classB: return restricted, please contact your Siemens partner/contact
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-37-14-03
eClass7.127-37-14-03
eClass827-37-14-03
eClass927-37-14-03
eClass9.127-37-14-03
ETIM5EC000216
ETIM6EC000216
ETIM7EC000216
UNSPSC1539-12-22-33
