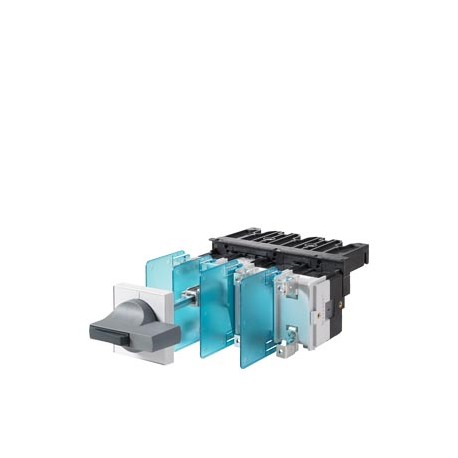

3KA5330-1AE01 SIEMENS Switch disconnector in new design Iu 160 A, Ue 690 V, 3-pole basic version without 8UC..
3KA5330-1AE01
53301
SIEMENS
1 Pcs.
Connectors > Switch disconnector
SWITCHES-DISCONNECTORS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Siemens 3KA5330-1AE01 switch disconnector is an industrial circuit interruption device engineered to provide manual load isolation in heavy power distribution networks. Switch disconnectors ensure positive opening contacts for safe servicing of electrical infrastructure.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): true
- Version as maintenance-/service switch (EF006986): true
- Version as safety switch (EF006985): true
- Version as emergency stop installation (EF006959): true
- Max. rated operation voltage Ue AC (EF007355): 690
- Rated permanent current Iu (EF001389): 160.0
- Rated permanent current at AC-23, 400 V (EF011777): 160
- Rated operation power at AC-23, 400 V (EF007027): 80.0
- Conditioned rated short-circuit current Iq (EF001444): 120.0
- Number of poles (EF001391): 3
- Motor drive optional (EF007386): false
- Motor drive integrated (EF006697): false
- Voltage release optional (EF007491): false
- Device construction (EF008240): Built-in device fixed built-in technique
- Suitable for floor mounting (EF007243): FALSE
- Suitable for front mounting 4-hole (EF007247): false
More info
▲ETIM: EC000216 - Switch disconnector
| Value | Unit | |
|---|---|---|
| Number of switches (EF005586) | - | |
| Degree of protection (NEMA) (EF011959) | - | |
| Version as main switch (EF006981) | true | |
| Version as maintenance-/service switch (EF006986) | true | |
| Version as safety switch (EF006985) | true | |
| Version as emergency stop installation (EF006959) | true | |
| Version as reversing switch (EF009408) | - | |
| Max. rated operation voltage Ue AC (EF007355) | 690 | V |
| Rated permanent current Iu (EF001389) | 160.0 | A |
| Rated permanent current at AC-23, 400 V (EF011777) | 160 | A |
| Rated permanent current at AC-21, 400 V (EF009165) | - | A |
| Rated operation power at AC-23, 400 V (EF007027) | 80.0 | kW |
| Conditioned rated short-circuit current Iq (EF001444) | 120.0 | kA |
| Number of poles (EF001391) | 3 | |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 | |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 | |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 | |
| Motor drive optional (EF007386) | false | |
| Motor drive integrated (EF006697) | false | |
| Voltage release optional (EF007491) | false | |
| Device construction (EF008240) | Built-in device fixed built-in technique | |
| Suitable for floor mounting (EF007243) | FALSE | |
| Suitable for front mounting 4-hole (EF007247) | false | |
| Suitable for front mounting centre (EF007248) | false | |
| Suitable for distribution board installation (EF007262) | false | |
| Suitable for intermediate mounting (EF007264) | false | |
| Colour control element (EF007167) | Other | |
| Type of control element (EF006976) | Other | |
| Interlockable (EF006281) | true | |
| Type of electrical connection of main circuit (EF006819) | Other | |
| Degree of protection (IP), front side (EF003118) | IP00 | |
| Rated operating voltage (EF001435) | - | V |
| Switching power at 400 V (EF009166) | - | kW |
| Rated operation power at AC-3, 400 V (EF001364) | - | kW |
| Rated short-time withstand current lcw (EF007050) | - | kA |
| Product | ||||||||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 3KA5330-1AE01 | |||||||||||||||||||||||||||||||||||||||
| Product Description | Switch disconnector in new design Iu=160 A, Ue = 690 V, 3-pole basic version without 8UC6 handle and shaft | |||||||||||||||||||||||||||||||||||||||
| Product family | Not available | |||||||||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM400:Phase Out Started | |||||||||||||||||||||||||||||||||||||||
| PLM Effective Date | Product phase-out since: 31.08.2018 | |||||||||||||||||||||||||||||||||||||||
| Notes | Sucessor:3KD3430-0NE20-0, different dimensions, some deviating technical values. | |||||||||||||||||||||||||||||||||||||||
| Price data | ||||||||||||||||||||||||||||||||||||||||
| Price Group | 12S | |||||||||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | |||||||||||||||||||||||||||||||||||||||
| Metal Factor | LAO----- | |||||||||||||||||||||||||||||||||||||||
| Delivery information | ||||||||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | |||||||||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 15 Day/Days | |||||||||||||||||||||||||||||||||||||||
| Net Weight (kg) | 1,997 Kg | |||||||||||||||||||||||||||||||||||||||
| Product Dimensions (W x L x H) | Not available | |||||||||||||||||||||||||||||||||||||||
| Packaging Dimension | 183,00 x 268,00 x 199,00 | |||||||||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | |||||||||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | |||||||||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | |||||||||||||||||||||||||||||||||||||||
| Additional Product Information | ||||||||||||||||||||||||||||||||||||||||
| EAN | 4011209446724 | |||||||||||||||||||||||||||||||||||||||
| UPC | 754554653952 | |||||||||||||||||||||||||||||||||||||||
| Commodity Code | 85362090 | |||||||||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | LV10.1 | |||||||||||||||||||||||||||||||||||||||
| Product Group | 5853 | |||||||||||||||||||||||||||||||||||||||
| Group Code | P360 | |||||||||||||||||||||||||||||||||||||||
| Country of origin | Germany | |||||||||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Given | |||||||||||||||||||||||||||||||||||||||
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. | |||||||||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |||||||||||||||||||||||||||||||||||||||
