View larger
Images are for illustrative purposes only. Please refer to data sheet for details

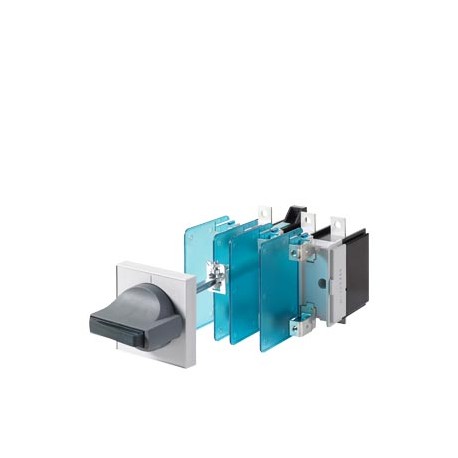

3KA5030-1AE01 SIEMENS Switch disconnector in new design Iu 63 A, Ue 690 V, 3-pole basic version without 8UC6..
3KA5030-1AE01
50301
SIEMENS
1 Pcs.
Switch disconnector in new design Iu=63 A, Ue = 690 V, 3-pole basic version without 8UC6 handle and shaft
Connectors > Switch disconnector
SWITCHES-DISCONNECTORS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲ETIM: EC000216 - Switch disconnector
| Value | Unit | |
|---|---|---|
| Rated permanent current at AC-21, 400 V (EF009165) | - | A |
| Switching power at 400 V (EF009166) | - | kW |
| Colour control element (EF007167) | - | |
| Rated short-time withstand current lcw (EF007050) | - | kA |
| Degree of protection (NEMA) (EF011959) | - | |
| Number of switches (EF005586) | - | |
| Rated operating voltage (EF001435) | - | V |
| Version as reversing switch (EF009408) | - | |
| Version as main switch (EF006981) | true | |
| Version as maintenance-/service switch (EF006986) | true | |
| Version as safety switch (EF006985) | true | |
| Version as emergency stop installation (EF006959) | true | |
| Max. rated operation voltage Ue AC (EF007355) | 690 | V |
| Rated permanent current Iu (EF001389) | 63.0 | A |
| Rated permanent current at AC-23, 400 V (EF011777) | 63 | A |
| Rated operation power at AC-23, 400 V (EF007027) | 30.0 | kW |
| Conditioned rated short-circuit current Iq (EF001444) | 50.0 | kA |
| Number of poles (EF001391) | 3 | |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 | |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 | |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 | |
| Motor drive optional (EF007386) | false | |
| Motor drive integrated (EF006697) | false | |
| Voltage release optional (EF007491) | false | |
| Device construction (EF008240) | Built-in device fixed built-in technique | |
| Suitable for floor mounting (EF007243) | FALSE | |
| Suitable for front mounting 4-hole (EF007247) | false | |
| Suitable for front mounting centre (EF007248) | false | |
| Suitable for distribution board installation (EF007262) | false | |
| Suitable for intermediate mounting (EF007264) | false | |
| Type of control element (EF006976) | Other | |
| Interlockable (EF006281) | true | |
| Type of electrical connection of main circuit (EF006819) | Other | |
| Degree of protection (IP), front side (EF003118) | IP00 | |
| Rated operation power at AC-3, 400 V (EF001364) | - | kW |
| Product | ||||||||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 3KA5030-1AE01 | |||||||||||||||||||||||||||||||||||||||
| Product Description | Switch disconnector in new design Iu=63 A, Ue = 690 V, 3-pole basic version without 8UC6 handle and shaft | |||||||||||||||||||||||||||||||||||||||
| Product family | Not available | |||||||||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM400:Phase Out Started | |||||||||||||||||||||||||||||||||||||||
| PLM Effective Date | Product phase-out since: 31.08.2018 | |||||||||||||||||||||||||||||||||||||||
| Notes | Sucessor:3KD2630-2ME20-0, different dimensions, some deviating technical values. | |||||||||||||||||||||||||||||||||||||||
| Price data | ||||||||||||||||||||||||||||||||||||||||
| Price Group | 12S | |||||||||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | |||||||||||||||||||||||||||||||||||||||
| Metal Factor | LAO----- | |||||||||||||||||||||||||||||||||||||||
| Delivery information | ||||||||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | |||||||||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 15 Day/Days | |||||||||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,905 Kg | |||||||||||||||||||||||||||||||||||||||
| Product Dimensions (W x L x H) | Not available | |||||||||||||||||||||||||||||||||||||||
| Packaging Dimension | 131,00 x 128,00 x 175,00 | |||||||||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | |||||||||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | |||||||||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | |||||||||||||||||||||||||||||||||||||||
| Additional Product Information | ||||||||||||||||||||||||||||||||||||||||
| EAN | 4011209450004 | |||||||||||||||||||||||||||||||||||||||
| UPC | 754554655284 | |||||||||||||||||||||||||||||||||||||||
| Commodity Code | 85362010 | |||||||||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | LV10.1 | |||||||||||||||||||||||||||||||||||||||
| Product Group | 5853 | |||||||||||||||||||||||||||||||||||||||
| Group Code | P360 | |||||||||||||||||||||||||||||||||||||||
| Country of origin | Germany | |||||||||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Given | |||||||||||||||||||||||||||||||||||||||
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. | |||||||||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |||||||||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||||||||||||||||||||
| Classifications | ||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||
