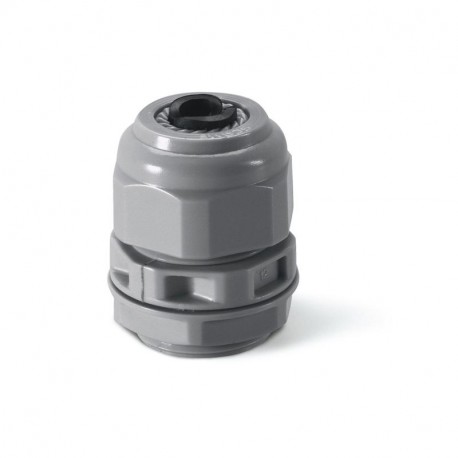

SCAME 805.5516 805.5516 SCAME CABLE GLAND M16X1,5 HEAVY DUTY View larger
Images are for illustrative purposes only. Please refer to data sheet for details

805.5516 SCAME CABLE GLAND M16X1,5 HEAVY DUTY

805.5516

8055516

SCAME

50 Pcs.

CABLE GLAND M16X1,5 HEAVY DUTY IP68 CABLE GLAND M16X1.5 M16X1,5 HEAVY DUTY IP66 DARK GREY

Cables > Cable gland
UNION Series

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This is a Scame 805.5516 CABLE GLAND M16X1,5 HEAVY DUTY component engineered to protect cable entry points from external contaminants and tension loads. Panel builders utilize heavy-duty fittings like this to ensure long-term reliability in harsh industrial control applications. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Synthetical description: CABLE GLAND
  • Protection degree IP: IP66
  • Type: HEAVY DUTY
  • Material: THERMOPLASTIC
  • Colour: DARK GREY
  • Thread (type): Metric
  • Thread: M16X1,5
  • Fixing hole: ø16mm
  • Cable size: ø4-8mm
  • Spanner size: 19mm
  • Thread length: 9,5mm
  • Seal spanner coupler: 2,5N/m
  • Nut spanner coupler: 4N/m
  • Commercial Series: UNION Series

More info

▲
Commercial Series
UNION Series
Synthetical description
CABLE GLAND
Protection degree IP
IP66
Type
HEAVY DUTY
Material
THERMOPLASTIC
Colour
DARK GREY
Thread (type)
Metric
Thread
M16X1,5
Fixing hole
ø16mm
Cable size
ø4-8mm
Spanner size
19mm
Thread length
9,5mm
Seal spanner coupler
2,5N/m
Nut spanner coupler
4N/m
Catalogue notes
Fixing type A
HEAVY DUTY version IP66 or IP68 (1 bar) if installed with corresponding seal.
