View larger
Images are for illustrative purposes only. Please refer to data sheet for details

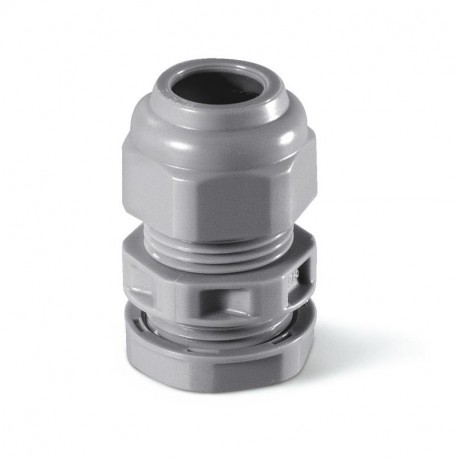

805.5512 SCAME CABLE GLAND M12X1,5 HEAVY DUTY
805.5512
8055512
SCAME
50 Pcs.
CABLE GLAND M12X1,5 HEAVY DUTY
IP68 M12X1.5 CABLE CABLE
M12X1,5 HEAVY DUTY IP66 DARK GREY
Cables > Cable gland
UNION Series
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Commercial Series
UNION Series
Synthetical description
CABLE GLAND
Protection degree IP
IP66
Type
HEAVY DUTY
Material
THERMOPLASTIC
Colour
DARK GREY
Thread (type)
Metric
Thread
M12X1,5
Fixing hole
ø12mm
Cable size
ø3-6mm
Spanner size
15mm
Thread length
9,5mm
Seal spanner coupler
2,5N/m
Nut spanner coupler
2,5N/m
Catalogue notes
Fixing type A
HEAVY DUTY version IP66 or IP68 (1 bar) if installed with corresponding seal.
