View larger
Images are for illustrative purposes only. Please refer to data sheet for details

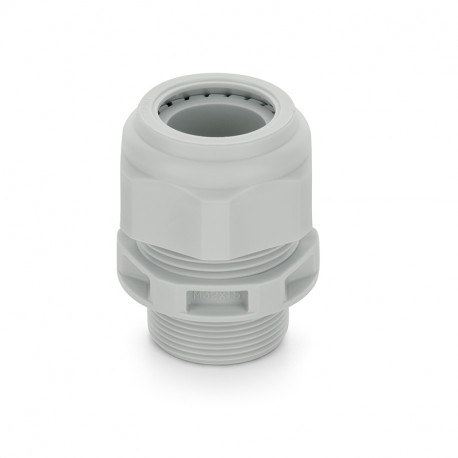

805.5432.0 SCAME CABLE GLAND M32X1,5 NO NUT LIGHT
805.5432.0
80554320
SCAME
25 Pcs.
CABLE GLAND M32X1,5 NO NUT LIGHT
IP66 CABLE GLAND M32X1.5
M32X1,5 LIGHT IP66 GREY
Cables > Cable gland
UNION Series
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Commercial Series
UNION Series
Synthetical description
CABLE GLAND
Protection degree IP
IP66
Type
LIGHT
Material
THERMOPLASTIC
Colour
GREY
Thread (type)
Metric
Thread
M32X1,5
Fixing hole
ø32mm
Cable size
ø18-25mm
Spanner size
42mm
Thread length
15mm
Seal spanner coupler
7N/m
Nut spanner coupler
14N/m
Catalogue notes
Cable glands are provided without gasket
