View larger
Images are for illustrative purposes only. Please refer to data sheet for details

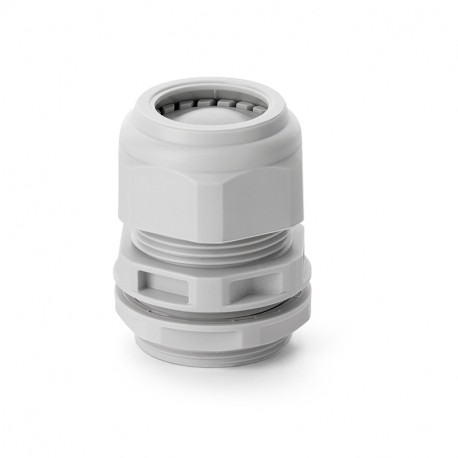

805.5425.1 SCAME CABLE GLAND M25X1,5 LIGHT+MEMBRANE
805.5425.1
80554251
SCAME
25 Pcs.
CABLE GLAND M25X1,5 LIGHT+MEMBRANE
IP66 CABLE GLAND M25X1.5
M25X1,5 LIGHT IP68 GREY
Cables > Cable gland
UNION Series
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Commercial Series
UNION Series
Synthetical description
CABLE GLAND
Protection degree IP
IP68
Type
LIGHT
Material
THERMOPLASTIC
Colour
GREY
Thread (type)
Metric
Thread
M25X1,5
Fixing hole
ø25mm
Cable size
ø13-18mm
Spanner size
33mm
Thread length
14mm
Seal spanner coupler
5,5N/m
Nut spanner coupler
9N/m
Catalogue notes
IP68 at 1 Bar pressure
