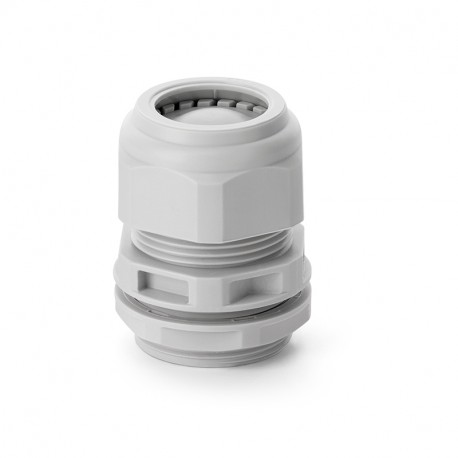

SCAME 805.5420.1 805.5420.1 SCAME CABLE GLAND M20X1,5 LIGHT+MEMBRANE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

805.5420.1 SCAME CABLE GLAND M20X1,5 LIGHT+MEMBRANE

805.5420.1

80554201

SCAME

25 Pcs.

CABLE GLAND M20X1,5 LIGHT+MEMBRANE IP66 M20X1,5 CABLE GLAND M20X1,5 LIGHT IP68 GREY

Cables > Cable gland
UNION Series

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Scame part number 805.5420.1 is a thermoplastic cable gland featuring an integrated membrane designed for light-duty industrial wiring applications. Technicians utilize these cost-effective entries to secure cables while protecting internal control panel electronics from airborne dust and moisture. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Synthetical description: CABLE GLAND
  • Protection degree IP: IP68
  • Type: LIGHT
  • Material: THERMOPLASTIC
  • Colour: GREY
  • Thread (type): Metric
  • Thread: M20X1,5
  • Fixing hole: ø20mm
  • Cable size: ø7-12mm
  • Spanner size: 24mm
  • Thread length: 12mm
  • Seal spanner coupler: 5N/m
  • Nut spanner coupler: 6N/m
  • Commercial Series: UNION Series
  • Catalogue notes: IP68 at 1 Bar pressure

More info

▲
Commercial Series
UNION Series
Synthetical description
CABLE GLAND
Protection degree IP
IP68
Type
LIGHT
Material
THERMOPLASTIC
Colour
GREY
Thread (type)
Metric
Thread
M20X1,5
Fixing hole
ø20mm
Cable size
ø7-12mm
Spanner size
24mm
Thread length
12mm
Seal spanner coupler
5N/m
Nut spanner coupler
6N/m
Catalogue notes
IP68 at 1 Bar pressure


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
