View larger
Images are for illustrative purposes only. Please refer to data sheet for details

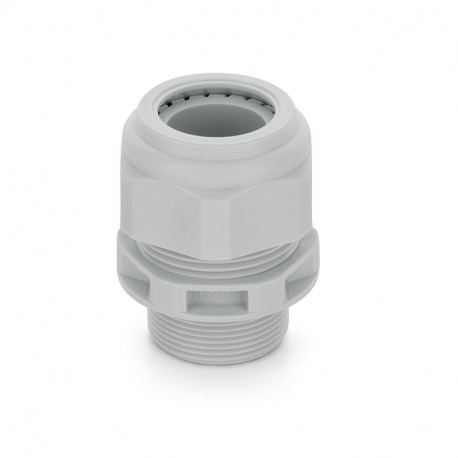

805.5420.0 SCAME CABLE GLAND M20X1,5 NO NUT LIGHT
805.5420.0
80554200
SCAME
25 Pcs.
CABLE GLAND M20X1,5 NO NUT LIGHT
IP66 M20X1.5 CABLE GLAND
M20X1,5 LIGHT IP66 GREY
Cables > Cable gland
UNION Series
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Commercial Series
UNION Series
Synthetical description
CABLE GLAND
Protection degree IP
IP66
Type
LIGHT
Material
THERMOPLASTIC
Colour
GREY
Thread (type)
Metric
Thread
M20X1,5
Fixing hole
ø20mm
Cable size
ø7-12mm
Spanner size
24mm
Thread length
12mm
Seal spanner coupler
5N/m
Nut spanner coupler
6N/m
Catalogue notes
Cable glands are provided without gasket
