View larger
Images are for illustrative purposes only. Please refer to data sheet for details

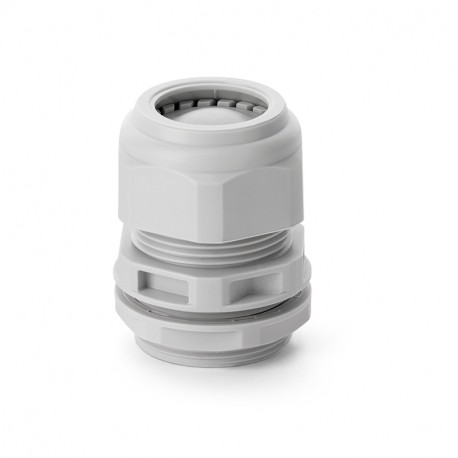

805.5412.1 SCAME CABLE GLAND M12X1,5 LIGHT+MEMBRANE
805.5412.1
80554121
SCAME
50 Pcs.
CABLE GLAND M12X1,5 LIGHT+MEMBRANE
IP66 M12X1.5 CABLE GLAND
M12X1,5 LIGHT IP68 GREY
Cables > Cable gland
UNION Series
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Commercial Series
UNION Series
Synthetical description
CABLE GLAND
Protection degree IP
IP68
Type
LIGHT
Material
THERMOPLASTIC
Colour
GREY
Thread (type)
Metric
Thread
M12X1,5
Fixing hole
ø12mm
Cable size
ø3-6mm
Spanner size
15mm
Thread length
9,5mm
Seal spanner coupler
2,5N/m
Nut spanner coupler
2,5N/m
Catalogue notes
IP68 at 1 Bar pressure
