View larger
Images are for illustrative purposes only. Please refer to data sheet for details

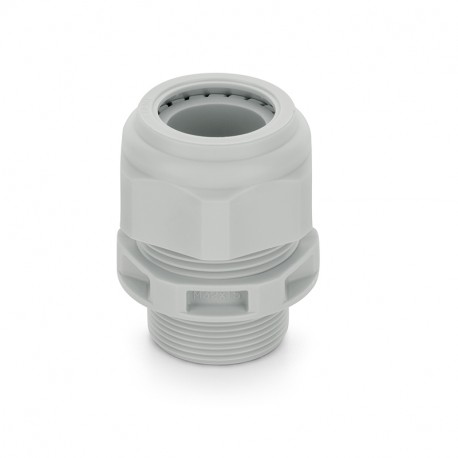

805.5412.0 SCAME CABLE GLAND M12X1,5 NO NUT LIGHT
805.5412.0
80554120
SCAME
50 Pcs.
CABLE GLAND M12X1,5 NO NUT LIGHT
IP66 M12X1.5 CABLE GLAND
M12X1,5 LIGHT IP66 GREY
Cables > Cable gland
UNION Series
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Commercial Series
UNION Series
Synthetical description
CABLE GLAND
Protection degree IP
IP66
Type
LIGHT
Material
THERMOPLASTIC
Colour
GREY
Thread (type)
Metric
Thread
M12X1,5
Fixing hole
ø12mm
Cable size
ø3-6mm
Spanner size
15mm
Thread length
9,5mm
Seal spanner coupler
2,5N/m
Nut spanner coupler
2,5N/m
Catalogue notes
Cable glands are provided without gasket
