View larger
Images are for illustrative purposes only. Please refer to data sheet for details

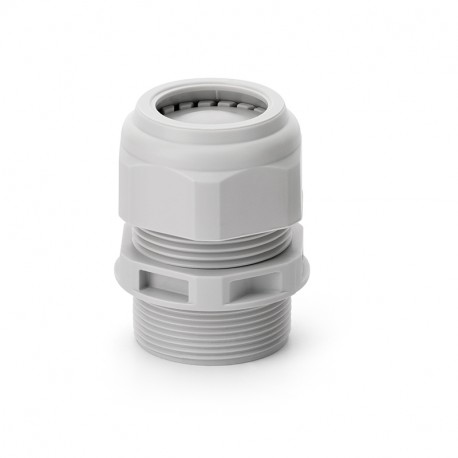

805.3349.2 SCAME CABLE GLAND IP66 PG 48
805.3349.2
80533492
SCAME
10 Pcs.
CABLE GLAND IP66 PG 48
IP66 PG48 CABLE GLAND
PG48 LIGHT IP66 GREY
Cables > Cable gland
UNION Series
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Commercial Series
UNION Series
Synthetical description
CABLE GLAND
Protection degree IP
IP66
Type
LIGHT
Material
THERMOPLASTIC
Colour
GREY
Thread (type)
PG
Thread
PG48
Fixing hole
ø60mm
Cable size
ø34-44mm
Spanner size
70mm
Thread length
20mm
Seal spanner coupler
12,5N/m
Nut spanner coupler
15N/m
Catalogue notes
Cable glands are provided without gasket
