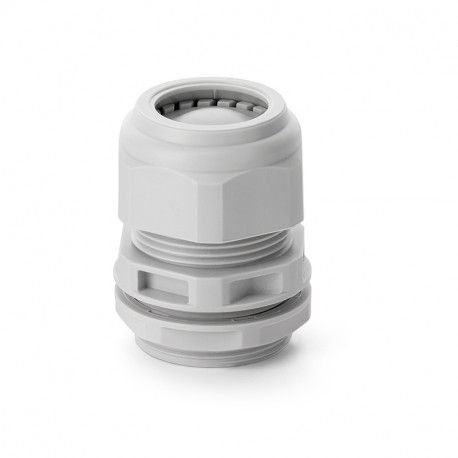

SCAME 805.3347.1 805.3347.1 SCAME CABLE GLAND IP66 PG 36 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

805.3347.1 SCAME CABLE GLAND IP66 PG 36

805.3347.1

80533471

SCAME

10 Pcs.

CABLE GLAND IP66 PG 36 IP66 PG36 CABLE GLAND PG36 LIGHT IP68 GREY

Cables > Cable gland
UNION Series

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Scame 805.3347.1 cable screw gland provides robust cable entry protection for industrial enclosures exposed to harsh conditions. Such components maintain ingress ratings while securely anchoring conductors entering distribution panels.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Synthetical description: CABLE GLAND
  • Protection degree IP: IP68
  • Type: LIGHT
  • Material: THERMOPLASTIC
  • Colour: GREY
  • Thread (type): PG
  • Thread: PG36
  • Fixing hole: ø48mm
  • Cable size: ø22-32mm
  • Spanner size: 53mm
  • Thread length: 17,5mm
  • Seal spanner coupler: 12,5N/m
  • Nut spanner coupler: 15N/m
  • Commercial Series: UNION Series
  • Catalogue notes: IP68 at 1 Bar pressure

More info

▲
Commercial Series
UNION Series
Synthetical description
CABLE GLAND
Protection degree IP
IP68
Type
LIGHT
Material
THERMOPLASTIC
Colour
GREY
Thread (type)
PG
Thread
PG36
Fixing hole
ø48mm
Cable size
ø22-32mm
Spanner size
53mm
Thread length
17,5mm
Seal spanner coupler
12,5N/m
Nut spanner coupler
15N/m
Catalogue notes
IP68 at 1 Bar pressure
