View larger

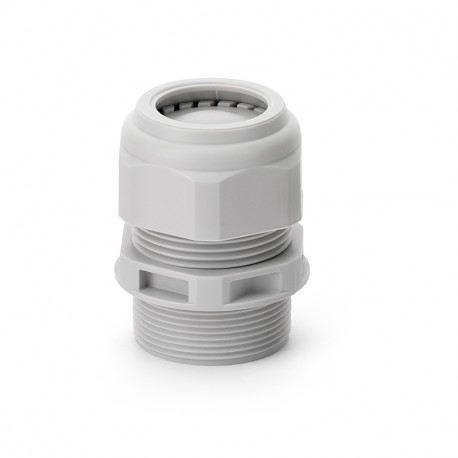

Images are for illustrative purposes only. Please refer to data sheet for details
805.3343.2 SCAME CABLE GLAND IP66 PG 13.5
805.3343.2
80533432
SCAME
25 Pcs.
CABLE GLAND IP66 PG 13.5
IP66 PG13.5 CABLE GLAND
PG13,5 LIGHT IP66 GREY
Cables > Cable gland
UNION Series
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Commercial Series
UNION Series
Synthetical description
CABLE GLAND
Protection degree IP
IP66
Type
LIGHT
Material
THERMOPLASTIC
Colour
GREY
Thread (type)
PG
Thread
PG13,5
Fixing hole
ø21mm
Cable size
ø7-12mm
Spanner size
24mm
Thread length
12mm
Seal spanner coupler
5N/m
Nut spanner coupler
6N/m
Catalogue notes
Cable glands are provided without gasket
