View larger
Images are for illustrative purposes only. Please refer to data sheet for details

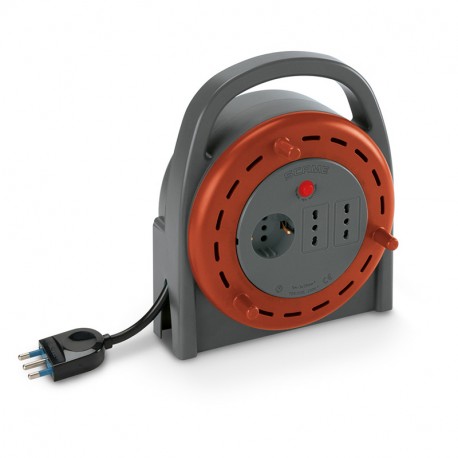

709.4720 SCAME DOMEST.CABLE REEL GER\IT.STD.NO THERMAL
709.4720
7094720
SCAME
1 Pcs.
DOMEST.CABLE REEL GER\IT.STD.NO THERMAL
DOMESTIC CABLE REEL
20m 1x2P+E-16A-(P30) 2x2P+E-16A-(P17/11)
Cables > Cable reel
TRIS Series With thermal switch
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Commercial Series
TRIS Series
Synthetical description
DOMESTIC CABLE REEL
Type of plugs
2P+E-16A-(S17)
Abbreviation of individuation
P11/P17
P30
No. of available outlets
3 NR
Type of sockets
1x2P+E-16A-(P30)
2x2P+E-16A-(P17/11)
Cable
H05VV-F
Cable section
1,5mm²
Cable length
20m
Wound cable power
1200W
Unwound cable power
3200W
Rated voltage
250V
Material
ENGINEERING PLASTIC
Colour
RED/ANTHRACITE
Catalogue notes
The maximun power supply is shown on every single item.
After use rewind the cable carefully back into the reel.
With thermal overload switch.
A bimetallic device is put in close contact with the supply cable and protects it from excessive overheating resulting from the Joule effect. If activated, the device opens the circuit to the socket, interrupting the supply of electrical energy. Reactivation is only possible manually and if the temperature is below intervention threshold.<br> <b>Warning</b>: The thermal overload switch is not an isolator switch, therefore maintenance operations are carried out after having disconnected the circuit. The thermal overload switch does not protect the load from overcurrents (over-loading and short-circuiting)
