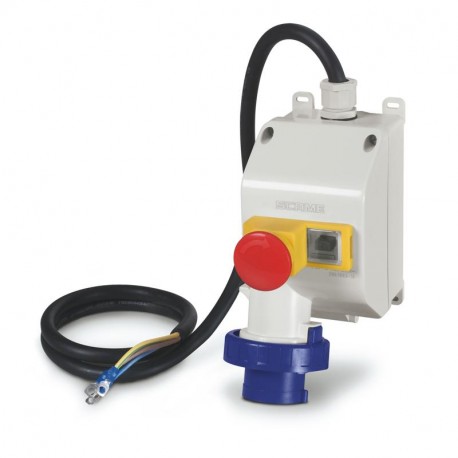

SCAME 299.1696-04 299.1696-04 SCAME MOTOR STARTER 16A 3P+E 400V AC IP55 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

299.1696-04 SCAME MOTOR STARTER 16A 3P+E 400V AC IP55

299.1696-04

2991696

SCAME

1 Pcs.

MOTOR STARTER 16A 3P+E 400V AC IP55 LIFEGUARD DEVICE 16A 3P+T 400V AC 16A 3P+E 400V AC 2,5-4,0A 1,2-1,9kW (1,5-2,5CV)

Automation > Motor protection plug
SALVAMOTORE Series

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Commercial Series
MOTOR START UNITS Series
Synthetical description
MOTOR STARTER
Material
THERMOPLASTIC
Rated current
16A
Poles
3P+E
Rated voltage
400V
Emergency current
2,5-4,0A
Motor power
1,2-1,9kW (1,5-2,5CV)
Catalogue notes
Hinged cover fixed with stainless steel screws.
Appliance inlet EUREKA Series IP67 (SNAP-ON couplet).
Mounting by brackets.
With appliance inlet and 1,2m of H07RN-F (rubber cable).
Motor power calculated with, rated voltage 230/400V and cos ϕ 0,7.
Enclosure made of insulating material grey colour RAL 7035.
