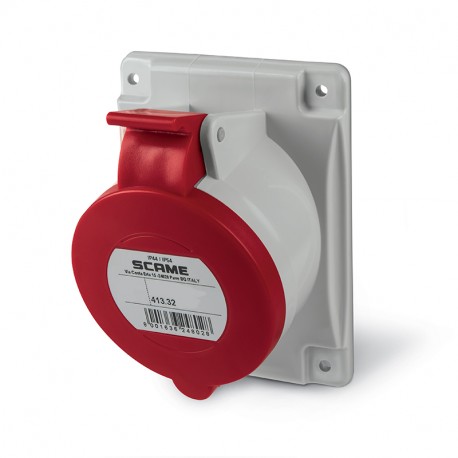

SCAME 413.3266 413.3266 SCAME FLUSH-MOUNTING SOCKET 3P+E IP44 32A 6h View larger
Images are for illustrative purposes only. Please refer to data sheet for details

413.3266 SCAME FLUSH-MOUNTING SOCKET 3P+E IP44 32A 6h

413.3266

413.3266

SCAME

10 units


Automation > Industrial Flush mounting socket outlets
OPTIMA Series IP44

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered for panel integration, the Scame 413.3266 flush-mounting socket delivers a reliable three-phase power receptacle with an angled orientation. Recessed industrial sockets help optimize space on distribution boards and machine frames while maintaining protected energy distribution. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Synthetical description: FLUSH-MOUNTING SOCKET
  • Mounting version: FLUSH MOUNTING
  • Rated current: 32A
  • Poles: 3P+E
  • Hour position: 6h
  • Rated voltage: 380-415V
  • Working frequency: 50Hz 60Hz
  • Colour: RED
  • Material: THERMOPLASTIC
  • Protection degree: Splash proof
  • Protection degree IP: IP44/IP54
  • Protection degree IK: IK08
  • Types of available outlets: ANGLED
  • Terminals: Screw terminals
  • Contact material: CuZn (brass)
  • Flange: 84X106MM

More info

▲
Commercial Series
OPTIMA Series
Synthetical description
FLUSH-MOUNTING SOCKET
Mounting version
FLUSH MOUNTING
Rated current
32A
Poles
3P+E
Hour position
6h
Rated voltage
380-415V
Working frequency
50Hz
60Hz
Colour
RED
Material
THERMOPLASTIC
Protection degree
Splash proof
Protection degree IP
IP44/IP54
Protection degree IK
IK08
Types of available outlets
ANGLED
Terminals
Screw terminals
Contact material
CuZn (brass)
Flange
84X106MM
Catalogue notes
Version also available in black; just add “.K” at the end of the catalogue number.
