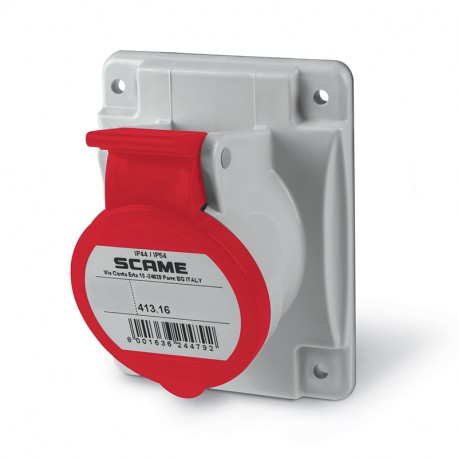

SCAME 413.1666 413.1666 SCAME FLUSH-MOUNTING SOCKET 3P+E IP44 16A 6h View larger
Images are for illustrative purposes only. Please refer to data sheet for details

413.1666 SCAME FLUSH-MOUNTING SOCKET 3P+E IP44 16A 6h

413.1666

413.1666

SCAME

10 units


Automation > Industrial Flush mounting socket outlets
OPTIMA Series IP44

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Flush-mounting socket part number 413.1666 by Scame is designed to provide secure power distribution points in industrial settings. These electrical accessories are regularly integrated into machinery enclosures, control panels, and facility walls to allow safe connection of mobile equipment to the main electrical supply. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Material series: OPTIMA Series
  • Synthetical description: FLUSH-MOUNTING SOCKET
  • Rated current: 16A
  • Poles: 3P+E
  • Hour position: 6h
  • Rated voltage (range): 250-400V
  • Rated voltage: 380-415V
  • Working frequency: 50Hz 60Hz
  • Colour: RED
  • Material: THERMOPLASTIC
  • Protection degree: Splash proof
  • Protection degree IP: IP44/IP54
  • Protection degree IK: IK08
  • Types of available outlets: ANGLED
  • Terminals: Screw terminals
  • Contact material: CuZn (brass)

More info

▲
Material series
OPTIMA Series
Synthetical description
FLUSH-MOUNTING SOCKET
Rated current
16A
Poles
3P+E
Hour position
6h
Rated voltage (range)
250-400V
Rated voltage
380-415V
Working frequency
50Hz
60Hz
Colour
RED
Material
THERMOPLASTIC
Protection degree
Splash proof
Protection degree IP
IP44/IP54
Protection degree IK
IK08
Types of available outlets
ANGLED
Terminals
Screw terminals
Contact material
CuZn (brass)
Flange
70X87MM
Catalogue notes


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
