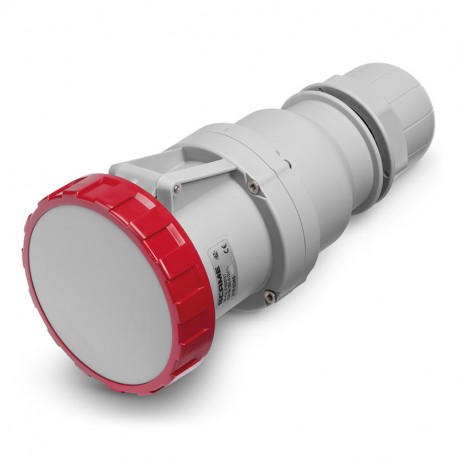

318.6346 SCAME CONNECTOR 3P+E IP66/IP67 63A 6h 380-415V
318.6346
318.6346
SCAME
6 units
Connectors > Industrial IEC309 Connectors
OPTIMA Series IP66/IP67
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Commercial Series
OPTIMA Series
Synthetical description
CONNECTOR
Mounting version
PORTABLE
Rated current
63A
Poles
3P+E
Hour position
6h
Rated voltage
380-415V
Working frequency
60Hz
50Hz
Colour
RED
Material
THERMOPLASTIC
Protection degree
Watertight
Protection degree IP
IP66/IP67/IP69
Protection degree IK
IK08
Types of available outlets
STRAIGHT
Terminals
Mantle terminals
Contact material
CuZn (brass)
Cable entry
CABLE GLAND
Notes
EASY-PLUG
Catalogue notes
Version also available in black; just add “.K” at the end of the catalogue number.
