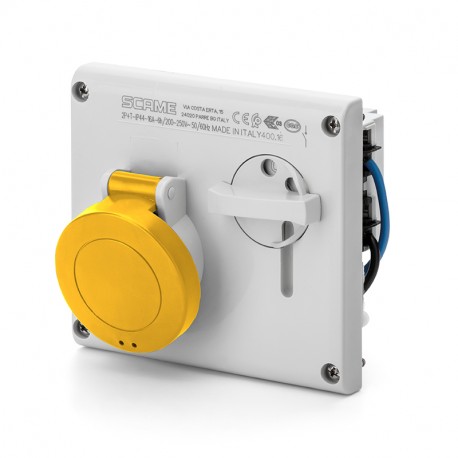

SCAME 400.1672 400.1672 SCAME INTERLOCKED SOCKET 3P+E IP44 16A 4h View larger
Images are for illustrative purposes only. Please refer to data sheet for details

400.1672 SCAME INTERLOCKED SOCKET 3P+E IP44 16A 4h

400.1672

400.1672

SCAME

1 unit


Automation > Interlocked switch socket outlets
OMNIA Series Without fuse holder IP44

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Material series
OMNIA Series
Synthetical description
INTERLOCKED SOCKET
Mounting version
FLUSH MOUNTING
Rated current
16A
Poles
3P+E
Hour position
4h
Rated voltage (range)
50-200V
Rated voltage
100-130V
Working frequency
60Hz
50Hz
Colour
YELLOW
Material
THERMOPLASTIC
Protection degree
Splash proof
Protection degree IP
IP44
Protection degree IK
IK08
Terminals
Screw terminals
Contact material
CuZn (brass)
Flange
136X125MM
Options
With mechanical interlock
Notes
WITHOUT FUSE HOLDER
Catalogue notes


Product Datasheet
