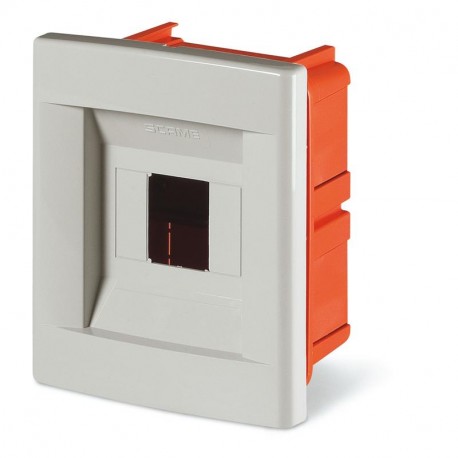

SCAME 675.2104B 675.2104B SCAME FLUSH MOUNTING CONSUMER UNIT 4 DIN MOD. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

675.2104B SCAME FLUSH MOUNTING CONSUMER UNIT 4 DIN MOD.

675.2104B

6752104

SCAME

1 Pcs.

FLUSH MOUNTING CONSUMER UNIT 4 DIN MOD. DISTRICT CHART IP40 4 DIN 180x150x75 IP40 FLUSH MOUNTING 4 DIN 4+1/2 MOD. 150x180x75mm WHITE

Automation > Small distribution board
EMERGENCY Series

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Constructed as a 675.2104B Scame flush mounting consumer unit 4 din mod., this thermoplastic enclosure provides a secure, organized housing space for miniature circuit breakers and modular electrical control apparatus within commercial or residential setups. Such distribution boxes safely aggregate protection devices while offering accessible interior routing for local power distribution feeds.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Synthetical description: CONSUMER UNIT
  • Colour: WHITE
  • Material: THERMOPLASTIC
  • Mounting version: FLUSH MOUNTING
  • Protection degree IP: IP40
  • Protection degree IK: IK06
  • Modularity: 4 DIN
  • N.° modules: 4+1/2 MOD.
  • Dissipable power: 17W
  • Dimensions: 150x180x75mm
  • Commercial Series: DOMINO IP40 Series [flush]

More info

▲
Commercial Series
DOMINO IP40 Series [flush]
Synthetical description
CONSUMER UNIT
Colour
WHITE
Material
THERMOPLASTIC
Mounting version
FLUSH MOUNTING
Protection degree IP
IP40
Protection degree IK
IK06
Modularity
4 DIN
N.° modules
4+1/2 MOD.
Dimensions
150x180x75mm
Dissipable power
17W
Catalogue notes
Without window.
Power dissipation calculated in conformity with IEC EN 62208 and IEC EN 60670-24 standards
(*) Power dissipation calculated when 2 consumer units are on top of each other joined by specially designed accessories.
