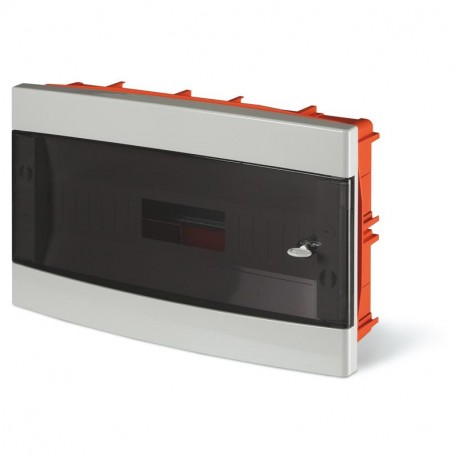

675.2018B.2012 SCAME FLUSH MOUNTING CONSUMER UNIT 18 DIN MOD.
675.2018B.2012
6752018
SCAME
1 Pcs.
Automation > Small distribution board
EMERGENCY Series
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Scame flush mounting consumer unit 18 din mod. is engineered to recess modular electrical distribution components cleanly into walls for a streamlined appearance. Such consumer units are standard in residential and commercial building wiring projects to house protective breakers. Please note that pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Material series: DOMINO IP40 Series [flush]
- Synthetical description: CONSUMER UNIT
- Colour: WHITE
- Material: THERMOPLASTIC
- Mounting version: FLUSH MOUNTING
- Protection degree IP: IP40
- Protection degree IK: IK06
- Modularity: 18 DIN
- N.° modules: 18+1 MOD.
- Dissipable power: 36W
- Dimensions: 434x270x75mm
