View larger
Images are for illustrative purposes only. Please refer to data sheet for details

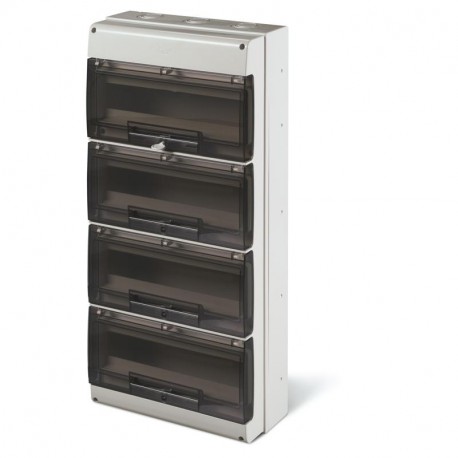

672.7064 SCAME CONSUMER UNIT 64 DIN MODULES IP66
672.7064
6727064
SCAME
1 Pcs.
CONSUMER UNIT 64 DIN MODULES IP66
DISTRICT CHART IP66 M700 700x328x140
IP66 SURFACE MOUNTING M700 64 MOD. 328x700x140mm GREY
Automation > Small distribution board
DOMINO Series Surface mounting IP66
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Material series
DOMINO IP66 Series [enclosure]
Synthetical description
CONSUMER UNIT
Colour
GREY
Material
THERMOPLASTIC
Mounting version
SURFACE MOUNTING
Protection degree IP
IP66
Protection degree IK
IK07
Modularity
M700
N.° modules
64 MOD.
Dimensions
328x700x140mm
Dissipable power
60W
Catalogue notes
