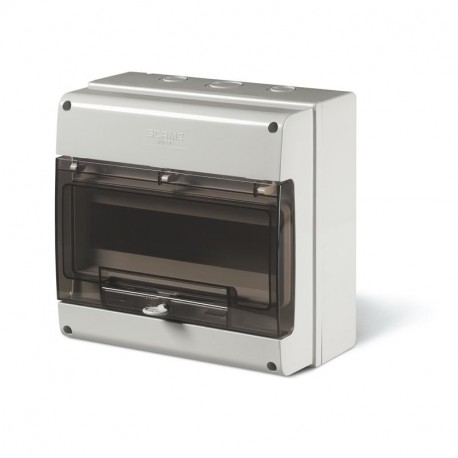

SCAME 672.2012 672.2012 SCAME CONSUMER UNIT 12 DIN MODULES IP66 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

672.2012 SCAME CONSUMER UNIT 12 DIN MODULES IP66

672.2012

6722012

SCAME

1 Pcs.

CONSUMER UNIT 12 DIN MODULES IP66 DISTR BOX. IP66 M250 250x256x140 IP66 SURFACE MOUNTING M250 12 MOD. 256x250x140mm GREY

Automation > Small distribution board
DOMINO Series Surface mounting IP66

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Environments exposed to heavy moisture or outdoor elements require high-ingress protection consumer units to keep electrical distribution safe. These sealed surface-mounted enclosures protect sensitive modular breakers against severe weather.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Synthetical description: CONSUMER UNIT
  • Colour: GREY
  • Material: THERMOPLASTIC
  • Mounting version: SURFACE MOUNTING
  • Protection degree IP: IP66
  • Protection degree IK: IK07
  • Modularity: M250
  • N.° modules: 12 MOD.
  • Dissipable power: 22W
  • Dimensions: 256x250x140mm
  • Commercial Series: DOMINO IP66 Series [enclosure]
  • Catalogue notes: Power dissipation calculated in conformity with IEC EN 62208 and IEC EN 60670-24 standards

More info

▲
Commercial Series
DOMINO IP66 Series [enclosure]
Synthetical description
CONSUMER UNIT
Colour
GREY
Material
THERMOPLASTIC
Mounting version
SURFACE MOUNTING
Protection degree IP
IP66
Protection degree IK
IK07
Modularity
M250
N.° modules
12 MOD.
Dimensions
256x250x140mm
Dissipable power
22W
Catalogue notes
Power dissipation calculated in conformity with IEC EN 62208 and IEC EN 60670-24 standards


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
