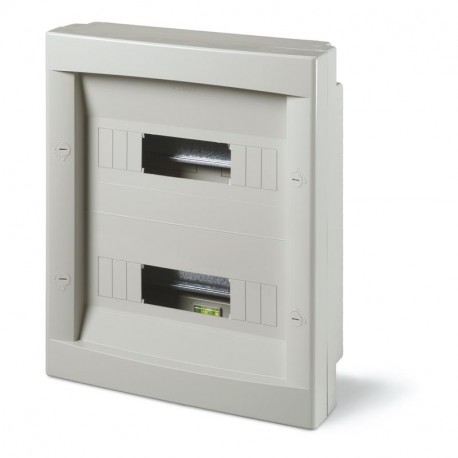

SCAME 673.4124B 673.4124B SCAME SURFACE MOUNTING CONSUMER UNIT 24 DIN MO View larger
Images are for illustrative purposes only. Please refer to data sheet for details

673.4124B SCAME SURFACE MOUNTING CONSUMER UNIT 24 DIN MO

673.4124B

6734124

SCAME

1 Pcs.

SURFACE MOUNTING CONSUMER UNIT 24 DIN MO DISTR BOX. IP40 24 DIN 400x326x108 IP40 SURFACE MOUNTING 24 DIN 24+4 MOD. 326x400x108mm WHITE

Automation > Small distribution board
DOMINO Series Surface mounting IP40

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Surface-mounted distribution enclosures like this Scame 673.4124B consumer unit act as central housing points for modular electrical devices in commercial and light industrial buildings. These boxes organize protective switchgear and ensure clean cable routing across interior walls. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Synthetical description: CONSUMER UNIT
  • Colour: WHITE
  • Material: THERMOPLASTIC
  • Mounting version: SURFACE MOUNTING
  • Protection degree IP: IP40
  • Protection degree IK: IK06
  • Modularity: 24 DIN
  • N.° modules: 24+4 MOD.
  • Dissipable power: 41W (87W*)
  • Dimensions: 326x400x108mm
  • Commercial Series: DOMINO IP40 Series [surface]

More info

▲
Commercial Series
DOMINO IP40 Series [surface]
Synthetical description
CONSUMER UNIT
Colour
WHITE
Material
THERMOPLASTIC
Mounting version
SURFACE MOUNTING
Protection degree IP
IP40
Protection degree IK
IK06
Modularity
24 DIN
N.° modules
24+4 MOD.
Dimensions
326x400x108mm
Dissipable power
41W
(87W*)
Catalogue notes
Modularity
Power dissipation calculated in conformity with IEC EN 62208 and IEC EN 60670-24 standards
(*) Power dissipation calculated when 2 consumer units are on top of each other joined by specially designed accessories.


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
