View larger
Images are for illustrative purposes only. Please refer to data sheet for details

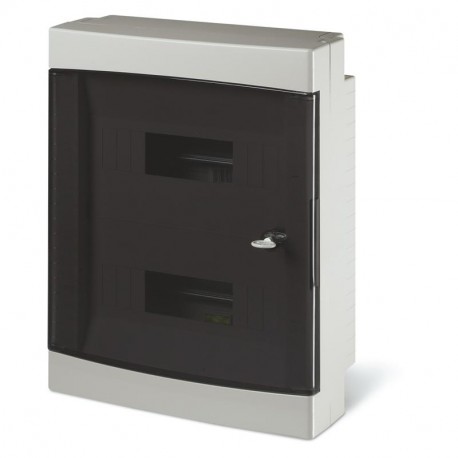

673.4024B.2012 SCAME SURFACE MOUNTING CONSUMER UNIT 24 DIN MO
673.4024B.2012
6734024
SCAME
1 Pcs.
SURFACE MOUNTING CONSUMER UNIT 24 DIN MO
DISTR BOX. IP40 24 DIN 400x326x108
IP40 SURFACE MOUNTING 24 DIN 24+4 MOD. 326x400x108mm WHITE
Automation > Small distribution board
DOMINO Series Surface mounting IP40
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Commercial Series
DOMINO IP40 Series [surface]
Synthetical description
CONSUMER UNIT
Colour
WHITE
Material
THERMOPLASTIC
Mounting version
SURFACE MOUNTING
Protection degree IP
IP40
Protection degree IK
IK06
Modularity
24 DIN
N.° modules
24+4 MOD.
Dimensions
326x400x108mm
Dissipable power
35W
(63W*)
Catalogue notes
Power dissipation calculated in conformity with IEC EN 62208 and IEC EN 60670-24 standards
.2012: white window, without label, without locking kit, with 2 IP00 terminal blocks (5x10mm² - 5x16mm²)
(*) Power dissipation calculated when 2 consumer units are on top of each other joined by specially designed accessories.
