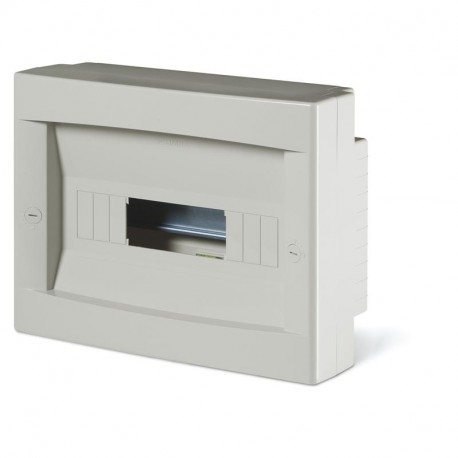

SCAME 673.2112 673.2112 SCAME SURFACE MOUNT. CONSUMER UNIT 12 DIN MOD. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

673.2112 SCAME SURFACE MOUNT. CONSUMER UNIT 12 DIN MOD.

673.2112

6732112

SCAME

1 Pcs.

SURFACE MOUNT. CONSUMER UNIT 12 DIN MOD. DISTR BOX. IP40 12 DIN 250x326x108 IP40 SURFACE MOUNTING 12 DIN 12+2 MOD. 326x250x108mm GREY

Automation > Small distribution board
DOMINO Series Surface mounting IP40

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Surface mount. consumer unit 12 din mod. by Scame provides a compact housing option for circuit breakers and electrical control gear in indoor commercial spaces. These distribution enclosures keep wiring organized and safeguard personnel from live terminals. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Synthetical description: CONSUMER UNIT
  • Colour: GREY
  • Material: THERMOPLASTIC
  • Mounting version: SURFACE MOUNTING
  • Protection degree IP: IP40
  • Protection degree IK: IK06
  • Modularity: 12 DIN
  • N.° modules: 12+2 MOD.
  • Dissipable power: 25W (50W*)
  • Dimensions: 326x250x108mm
  • Commercial Series: DOMINO IP40 Series [surface]

More info

▲
Commercial Series
DOMINO IP40 Series [surface]
Synthetical description
CONSUMER UNIT
Colour
GREY
Material
THERMOPLASTIC
Mounting version
SURFACE MOUNTING
Protection degree IP
IP40
Protection degree IK
IK06
Modularity
12 DIN
N.° modules
12+2 MOD.
Dimensions
326x250x108mm
Dissipable power
25W
(50W*)
Catalogue notes
Modularity
Power dissipation calculated in conformity with IEC EN 62208 and IEC EN 60670-24 standards
(*) Power dissipation calculated when 2 consumer units are on top of each other joined by specially designed accessories.
