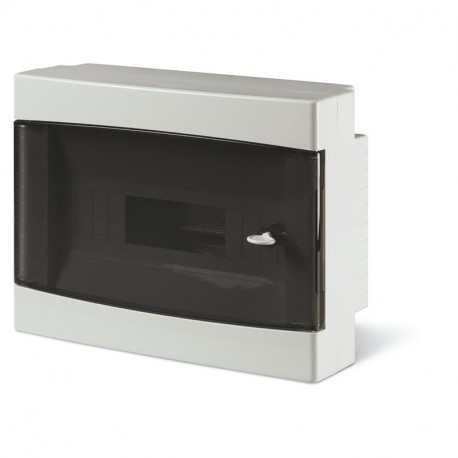

SCAME 673.2012B.2012 673.2012B.2012 SCAME SURFACE MOUNT. CONSUMER UNIT 12 DIN MOD. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

673.2012B.2012 SCAME SURFACE MOUNT. CONSUMER UNIT 12 DIN MOD.

673.2012B.2012

6732012

SCAME

1 Pcs.

SURFACE MOUNT. CONSUMER UNIT 12 DIN MOD. DISTR BOX. IP40 12 DIN 250x326x108 IP40 SURFACE MOUNTING 12 DIN 12+1 MOD. 326x250x108mm WHITE

Automation > Small distribution board
DOMINO Series Surface mounting IP40

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Surface mount. consumer unit 12 din mod. from Scame offers a clean white housing for organizing modular circuit protection devices in interior commercial layouts. These units provide a professional finish while safeguarding interior wiring terminals. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Synthetical description: CONSUMER UNIT
  • Colour: WHITE
  • Material: THERMOPLASTIC
  • Mounting version: SURFACE MOUNTING
  • Degree of Protection IP: IP40
  • Degree of Protection IK: IK06
  • Modularity: 12 DIN
  • N.° modules: 12+1 MOD.
  • Dissipable power: 24W (48W*)
  • Dimensions: 326x250x108mm
  • Commercial Series: DOMINO IP40 Series [surface]

More info

▲
Commercial Series
DOMINO IP40 Series [surface]
Synthetical description
CONSUMER UNIT
Colour
WHITE
Material
THERMOPLASTIC
Mounting version
SURFACE MOUNTING
Protection degree IP
IP40
Protection degree IK
IK06
Modularity
12 DIN
N.° modules
12+1 MOD.
Dimensions
326x250x108mm
Dissipable power
24W
(48W*)
Catalogue notes
Power dissipation calculated in conformity with IEC EN 62208 and IEC EN 60670-24 standards
.2012: white window, without label, without locking kit, with 2 IP00 terminal blocks (5x10mm² - 5x16mm²)
(*) Power dissipation calculated when 2 consumer units are on top of each other joined by specially designed accessories.
