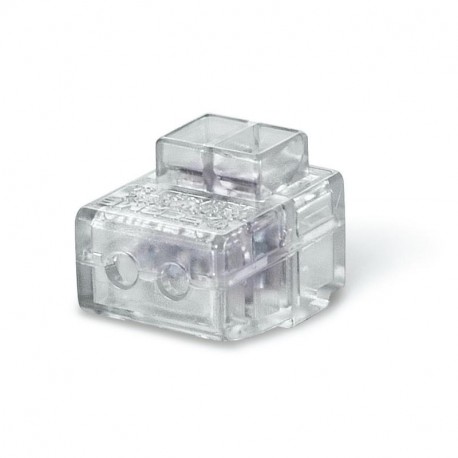

SCAME 817.1602 817.1602 SCAME MULTI-WAY WIRE CONNECTOR 2x16mmq 450V AC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

817.1602 SCAME MULTI-WAY WIRE CONNECTOR 2x16mmq 450V AC

817.1602

8171602

SCAME

10 Pcs.

MULTI-WAY WIRE CONNECTOR 2x16mmq 450V AC TERMINAL BLOCK WITH MULTIPLE VIAS 2x16mmq 450V AC 2 WAYS 2x16mm² TRANSPARENT

Automation > Single- and multi-pole terminal strip
CONNECTO Series Multi-way wire connectros

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Scame multi-way wire connector (part number 817.1602) serves as a dual-path junction point for splitting electrical feeds inside control panels. Multi-way terminal components are essential in automation systems for organizing branch circuits safely.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Synthetical description: MULTI-WAY WIRE CONNECTOR
  • Number of ways: 2 WAYS
  • Connecting capacity: 2x16mm²
  • Rated voltage: 450V
  • Colour: TRANSPARENT
  • Material: ENGINEERING PLASTIC
  • Dimensions: 33x28x24mm
  • Commercial Series: CONNECTO Series

More info

▲
Commercial Series
CONNECTO Series
Synthetical description
MULTI-WAY WIRE CONNECTOR
Number of ways
2 WAYS
Connecting capacity
2x16mm²
Rated voltage
450V
Dimensions
33x28x24mm
Colour
TRANSPARENT
Material
ENGINEERING PLASTIC
Catalogue notes
Protection degree: IP20
Cage clamp connectors.
Rated voltage 450V~.
Captive screws.
Self-extinguishing material in compliance with IEC 60695-2-1 standard 850°C.
Max. service temperature - continuous duty: 85°C.
Engineering plastic casing
