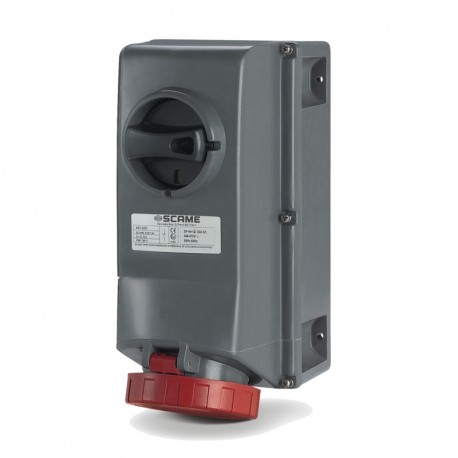

SCAME 503.1683 503.1683 SCAME INTERLOCK.SOCKET 2P+E IP66 16A 6h View larger
Images are for illustrative purposes only. Please refer to data sheet for details

503.1683 SCAME INTERLOCK.SOCKET 2P+E IP66 16A 6h

503.1683

503.1683

SCAME

1 unit


Automation > Surface mounting socket outlets
ADVANCE-GRP Series IP66/IP67

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered with glass-reinforced polyester, the Scame interlocked socket designated as part number 503.1683 delivers reliable surface-mounted power distribution in harsh environments. Switched sockets protect personnel by ensuring the circuit is de-energized during plug insertion. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Synthetical description: INTERLOCKED SOCKET
  • Mounting version: SURFACE MOUNTING
  • Rated current: 16A
  • Poles: 2P+E
  • Hour position: 6h
  • Rated voltage: 200-250V
  • Working frequency: 50Hz 60Hz
  • Colour: BLUE
  • Material: GRP Glass Reinforced Polyester
  • Protection degree: Splash proof
  • Protection degree IP: IP66
  • Protection degree IK: 7J
  • Terminals: Mantle terminals
  • Contact material: CuZn (brass)
  • Flange: 130X260MM_PAR
  • Working temperature: -25°C/+60°C

More info

▲
Commercial Series
ADVANCE-GRP[EX] Series
Synthetical description
INTERLOCKED SOCKET
Mounting version
SURFACE MOUNTING
Rated current
16A
Poles
2P+E
Hour position
6h
Rated voltage
200-250V
Working frequency
50Hz
60Hz
Colour
BLUE
Material
GRP Glass Reinforced Polyester
Protection degree
Splash proof
Protection degree IP
IP66
Protection degree IK
7J
Terminals
Mantle terminals
Contact material
CuZn (brass)
Flange
130X260MM_PAR
Working temperature
-25°C/+60°C
GLOW WIRE
GW 960°C
Self-extinguishing UL94
V0
Group and categories EX
II 2D
Dust protection
Ex tb IIIC T90°C Db IP66
Ambient temperature Ta min
-25 °C
Ambient temperature Ta max
60 °C
Options
With mechanical interlock
Padlock
ø5mm
Catalogue notes
ATEX [ATmosphères EXplosibles]: for applications in potentially explosive atmospheres.
