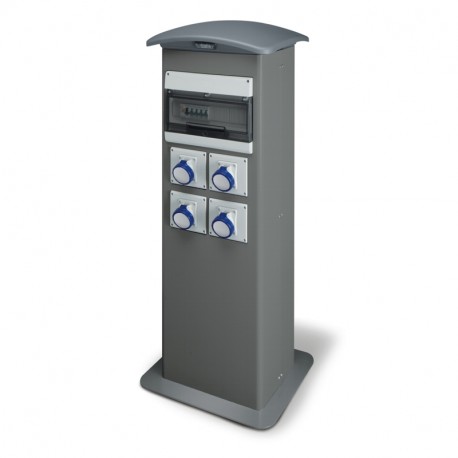

SCAME 659.DB5241-02 659.DB5241-02 SCAME PILLAR DOMINO-OMNIA S.STEEL IP66 12A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

659.DB5241-02 SCAME PILLAR DOMINO-OMNIA S.STEEL IP66 12A

659.DB5241-02

524102

SCAME

1 Pcs.

PILLAR DOMINO-OMNIA S.STEEL IP66 12A TURRET DOMINO-OMNIA INOX IP66 12A 400V IP66 3P+N+E 12A 400V 487x1235x375mm

Automation > Light/energy pole
Distribution assemblies - SCAME

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for reliable outdoor service, the Scame 659.DB5241-02 is a stainless steel turret assembly that houses multiple connection points. Industrial facilities and exterior installations rely on this type of equipment to deliver safe, weather-sealed electrical distribution. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Synthetical description: PILLAR DOMINO-OMNIA S.STEEL
  • Material: STAINLESS STEEL [AISI316L]
  • Colour: GREY
  • Protection degree IP: IP66
  • Protection degree IK: IK10
  • Mounting version: ON TURRET
  • Rated current: 12A
  • Rated voltage: 400V
  • Working frequency: 50/60Hz
  • Poles: 3P+N+E
  • Hour position: 6h
  • Typology: Stationary distrib.assemblies
  • Inlet supply unit: Terminal block 16mm²
  • RCD protection: On single outgoing circuit/soc
  • No. of available outlets: 4 NR
  • In disp. ing/tipo apparecchio: Disconnecting switch 4P 63A

More info

▲
Commercial Series
KIOSK Series
Synthetical description
PILLAR DOMINO-OMNIA S.STEEL
Material
STAINLESS STEEL [AISI316L]
Colour
GREY
Dimensions
487x1235x375mm
Protection degree IP
IP66
Protection degree IK
IK10
Mounting version
ON TURRET
Rated current
12A
Rated voltage
400V
Working frequency
50/60Hz
Poles
3P+N+E
Hour position
6h
Typology
Stationary distrib.assemblies
Inlet supply unit
Terminal block 16mm²
RCD protection
On single outgoing circuit/soc
No. of available outlets
4 NR
In disp. ing/tipo apparecchio
Disconnecting switch 4P 63A
Catalogue notes
Upon request, versions can be built with the water kit (contact the CIT - Technical Information Centre)
