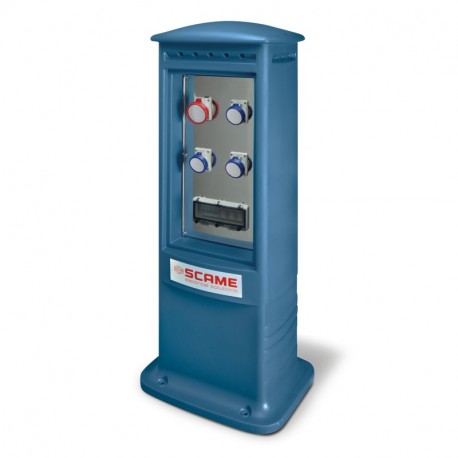

SCAME 659.DB5141-04 659.DB5141-04 SCAME PILLAR DOMINO-OPTIMA S.STEEL IP66 12A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

659.DB5141-04 SCAME PILLAR DOMINO-OPTIMA S.STEEL IP66 12A

659.DB5141-04

514104

SCAME

1 Pcs.

PILLAR DOMINO-OPTIMA S.STEEL IP66 12A TURRET DOMINO-OPTIMA INOX IP66 12A 400V IP66 3P+N+E 12A 400V 487x1235x375mm

Automation > Light/energy pole
Distribution assemblies - SCAME

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Commercial Series
KIOSK Series
Synthetical description
PILLAR DOMINO-OPTIMA S.STEEL
Material
STAINLESS STEEL [AISI316L]
Colour
GREY
Dimensions
487x1235x375mm
Protection degree IP
IP66
Protection degree IK
IK10
Mounting version
ON TURRET
Rated current
12A
Rated voltage
400V
Working frequency
50/60Hz
Poles
3P+N+E
Hour position
6h
Typology
Stationary distrib.assemblies
Inlet supply unit
Terminal block 16mm²
RCD protection
On single outgoing circuit/soc
No. of available outlets
4 NR
In disp. ing/tipo apparecchio
Not applicable
Catalogue notes
Upon request, versions can be built with the water kit (contact the CIT - Technical Information Centre)
Sockets with "SAFE-IN" safety device
