> SCAME > Distribution assemblies - SCAME > 514102

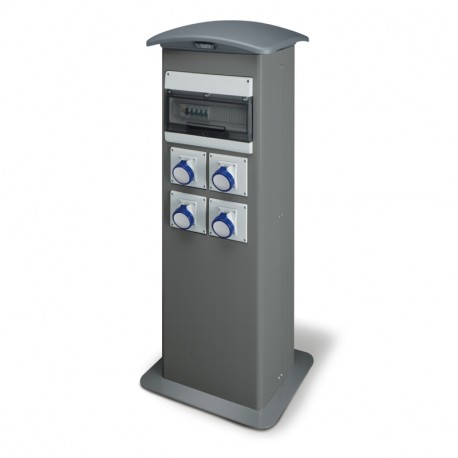

SCAME 659.DA5141-02 659.DA5141-02 SCAME PILLAR DOMINO-OPTIMA METAL IP66 12A 400V View larger
Images are for illustrative purposes only. Please refer to data sheet for details

659.DA5141-02 SCAME PILLAR DOMINO-OPTIMA METAL IP66 12A 400V

659.DA5141-02

514102

SCAME

1 Pcs.

PILLAR DOMINO-OPTIMA METAL IP66 12A 400V DOMINO-OPTIMA MET TURRET. IP66 12A 400V IP66 3P+N+E 12A 400V 487x1235x375mm

Automation > Light/energy pole
Distribution assemblies - SCAME

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Commercial Series
KIOSK Series
Synthetical description
PILLAR DOMINO-OPTIMA METAL
Material
VARNISHED METAL
Colour
GREY
Dimensions
487x1235x375mm
Protection degree IP
IP66
Protection degree IK
IK10
Mounting version
ON TURRET
Rated current
12A
Rated voltage
400V
Working frequency
60Hz
50Hz
Poles
3P+N+E
Hour position
6h
Typology
Stationary distrib.assemblies
Inlet supply unit
Terminal block 16mm²
RCD protection
On single outgoing circuit/soc
No. of available outlets
4 NR
In disp. ing/tipo apparecchio
Disconnecting switch 4P 63A
Catalogue notes
Upon request, versions can be built with the water kit (contact the CIT - Technical Information Centre)
Sockets with "SAFE-IN" safety device


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
