View larger
Images are for illustrative purposes only. Please refer to data sheet for details

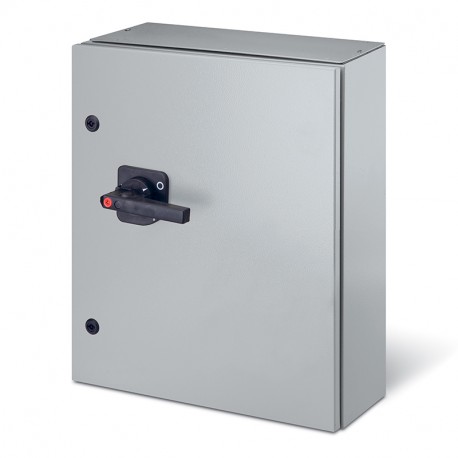

590.KEMD63005 SCAME SWITCH DISCONNECTOR IP65 630A 3P+N
590.KEMD63005
63005
SCAME
1 Pcs.
SWITCH DISCONNECTOR IP65 630A 3P+N
MANOEUVRING INT. 630A 3P+N KF5 IP65
630A 3P+N IP65 DIN-NH 600x800x300mm KF5 IK10 EMERGENCY YELLOW/RED FUSE: DIN-NH
Connectors > Switch disconnector
Switches - SCAME
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Commercial Series
ISOLATORS-HR Series
Synthetical description
SWITCH DISCONNECTOR
Construction type
Enclosed
Mounting version
SURFACE MOUNTING
Material
METAL
Protection degree IP
IP65
Installation temperature
-25°C/+60°C
Type
EMERGENCY
Colour
YELLOW/RED
Rated current
630A
Poles
3P+N
Switch size
KF5
Fuse type
DIN-NH
Rated voltage
690V
Dimensions
600x800x300mm
Notes
FUSE: DIN-NH
Protection degree IK
IK10
Rated insulation voltage (Ui)
1000VAC
1500VDC
Rated impulse voltage (Uimp)
12KV
Thermal current (Ithe)
630A
Current (Ie) in AC21A (415V)
630A
Current (Ie) in AC21A (500V)
630A
Current (Ie) in AC21A (690V)
630A
Current (Ie) in AC22A (415V)
630A
Current (Ie) in AC22A (500V)
630A
Current (Ie) in AC22A (690V)
630A
Current (Ie) in AC23A (415V)
630A
Current (Ie) in AC23A (500V)
500A
Current (Ie) in AC23A (690V)
400A
Current (Ie) in DC21A (220V)
630A
Current (Ie) in DC21A (400V)
630A
Current (Ie) in DC21A (600V)
630A
Conditional short circuit cur.
50kAeff
Associate fuse - type gG
630A
Terminal bolt size
M16
Palm width
50mm
Catalogue notes
TOP/BOTTOM = Top/Bottom connection
Equipped with door interlock
Handle padlockable in OFF position only (3 padlocks)
Fuses not supplied
With late break and early make neutral pole
Gland plate cable entry on bottom side
