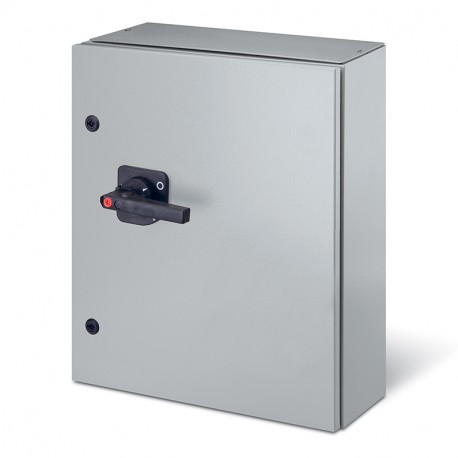

SCAME 590.KEMD40003 590.KEMD40003 SCAME SWITCH DISCONNECTOR IP65 400A 3P View larger
Images are for illustrative purposes only. Please refer to data sheet for details

590.KEMD40003 SCAME SWITCH DISCONNECTOR IP65 400A 3P

590.KEMD40003

40003

SCAME

1 Pcs.

SWITCH DISCONNECTOR IP65 400A 3P MANOEUVRING INT. 400A 3P KF4 IP65 400A 3P IP65 DIN-NH 500x700x250mm KF4 IK10 EMERGENCY YELLOW/RED FUSE: DIN-NH

Connectors > Switch disconnector
Switches - SCAME

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Scame 590.KEMD40003 switch disconnector is an enclosed emergency isolation unit housed in a heavy-duty metal cabinet for surface mounting. High-capacity fused disconnectors are deployed in industrial distribution networks to provide both circuit breaking and short-circuit protection. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Synthetical description: SWITCH DISCONNECTOR
  • Construction type: Enclosed
  • Mounting version: SURFACE MOUNTING
  • Material: METAL
  • Protection degree IP: IP65
  • Installation temperature: -25°C/+60°C
  • Type: EMERGENCY
  • Colour: YELLOW/RED
  • Rated current: 400A
  • Poles: 3P
  • Switch size: KF4
  • Fuse type: DIN-NH
  • Rated voltage: 690V
  • Notes: FUSE: DIN-NH
  • Protection degree IK: IK10
  • Rated insulation voltage (Ui): 1000VAC 1500VDC

More info

▲
Commercial Series
ISOLATORS-HR Series
Synthetical description
SWITCH DISCONNECTOR
Construction type
Enclosed
Mounting version
SURFACE MOUNTING
Material
METAL
Protection degree IP
IP65
Installation temperature
-25°C/+60°C
Type
EMERGENCY
Colour
YELLOW/RED
Rated current
400A
Poles
3P
Switch size
KF4
Fuse type
DIN-NH
Rated voltage
690V
Dimensions
500x700x250mm
Notes
FUSE: DIN-NH
Protection degree IK
IK10
Rated insulation voltage (Ui)
1000VAC
1500VDC
Rated impulse voltage (Uimp)
12KV
Thermal current (Ithe)
400A
Current (Ie) in AC21A (415V)
400A
Current (Ie) in AC21A (500V)
400A
Current (Ie) in AC21A (690V)
400A
Current (Ie) in AC22A (415V)
400A
Current (Ie) in AC22A (500V)
400A
Current (Ie) in AC22A (690V)
400A
Current (Ie) in AC23A (415V)
400A
Current (Ie) in AC23A (500V)
315A
Current (Ie) in AC23A (690V)
250A
Current (Ie) in DC21A (220V)
400A
Current (Ie) in DC21A (400V)
400A
Current (Ie) in DC21A (600V)
400A
Conditional short circuit cur.
50kAeff
Associate fuse - type gG
400A
Terminal bolt size
M12
Palm width
30mm
Catalogue notes
TOP/BOTTOM = Top/Bottom connection
Equipped with door interlock
Handle padlockable in OFF position only (3 padlocks)
Fuses not supplied
Gland plate cable entry on bottom side
