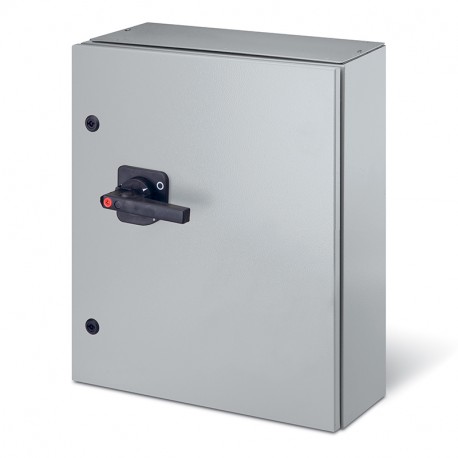

590.KEMD25005 SCAME SWITCH DISCONNECTOR IP65 250A 3P+N
590.KEMD25005
25005
SCAME
1 Pcs.
SWITCH DISCONNECTOR IP65 250A 3P+N
MANOEUVRING INT. 250A 3P+N KF3 IP65
250A 3P+N IP65 DIN-NH 400x600x200mm KF3 IK10 EMERGENCY YELLOW/RED FUSE: DIN-NH
Connectors > Switch disconnector
Switches - SCAME
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Commercial Series
ISOLATORS-HR Series
Synthetical description
SWITCH DISCONNECTOR
Construction type
Enclosed
Mounting version
SURFACE MOUNTING
Material
METAL
Protection degree IP
IP65
Installation temperature
-25°C/+60°C
Type
EMERGENCY
Colour
YELLOW/RED
Rated current
250A
Poles
3P+N
Switch size
KF3
Fuse type
DIN-NH
Rated voltage
690V
Dimensions
400x600x200mm
Notes
FUSE: DIN-NH
Protection degree IK
IK10
Rated insulation voltage (Ui)
1000VAC
1500VDC
Rated impulse voltage (Uimp)
12KV
Thermal current (Ithe)
250A
Current (Ie) in AC21A (415V)
250A
Current (Ie) in AC21A (500V)
250A
Current (Ie) in AC21A (690V)
250A
Current (Ie) in AC22A (415V)
250A
Current (Ie) in AC22A (500V)
250A
Current (Ie) in AC22A (690V)
250A
Current (Ie) in AC23A (415V)
250A
Current (Ie) in AC23A (500V)
200A
Current (Ie) in AC23A (690V)
160A
Current (Ie) in DC21A (220V)
250A
Current (Ie) in DC21A (400V)
250A
Conditional short circuit cur.
50kAeff
Associate fuse - type gG
250A
Terminal bolt size
M10
Palm width
25mm
Catalogue notes
TOP/BOTTOM = Top/Bottom connection
Equipped with door interlock
Handle padlockable in OFF position only (3 padlocks)
Fuses not supplied
With late break and early make neutral pole
Gland plate cable entry on bottom side
