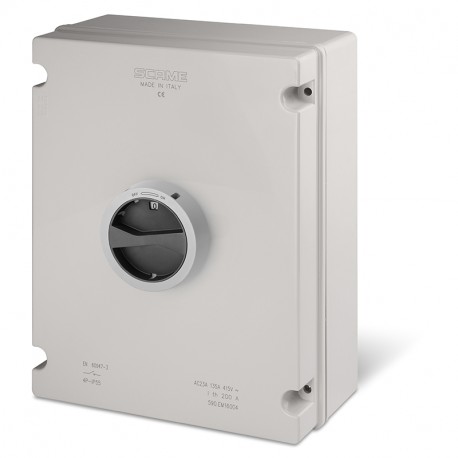

590.HEM16005.W SCAME SWITCH DISCONNECTOR 160A 3P+N IP65
590.HEM16005.W
16005
SCAME
1 Pcs.
SWITCH DISCONNECTOR 160A 3P+N IP65
MANOEUVRING INT. 160A 3P+N IP65
160A 3P+N IP65 315x410x150mm K2 IK08 EMERGENCY YELLOW/RED HIGH WIRING CAPACITY
Connectors > Switch disconnector
Switches - SCAME
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Commercial Series
ISOLATORS-AL Series
Synthetical description
SWITCH DISCONNECTOR
Construction type
Enclosed
Mounting version
SURFACE MOUNTING
Material
DIE-CAST ALUMINIUM
Protection degree IP
IP65
Installation temperature
-25°C/+60°C
Type
EMERGENCY
Colour
YELLOW/RED
Rated current
160A
Poles
3P+N
Switch size
K2
Rated voltage
690V
Dimensions
315x410x150mm
Notes
HIGH WIRING CAPACITY
Protection degree IK
IK08
Rated insulation voltage (Ui)
1000VAC
Rated impulse voltage (Uimp)
12KV
Thermal current (Ithe)
200A
Current (Ie) in AC21A (415V)
200A
Current (Ie) in AC21A (500V)
200A
Current (Ie) in AC21A (690V)
200A
Current (Ie) in AC22A (415V)
160A
Current (Ie) in AC22A (500V)
160A
Current (Ie) in AC22A (690V)
160A
Current (Ie) in AC23A (415V)
160A
Current (Ie) in AC23A (500V)
125A
Current (Ie) in AC23A (690V)
100A
Power AC23A (415V)
85kW
Short-time current
8kA Icw(1s)
Conditional short circuit cur.
50kAeff
Associate fuse - type gG
160A
Terminal bolt size
M8
Palm width
21mm
Catalogue notes
Handle padlockable in OFF position only (3 padlocks)
Equipped with door interlock
Blank sides
With late break and early make neutral pole
Switch and enclosure increased dimensions
