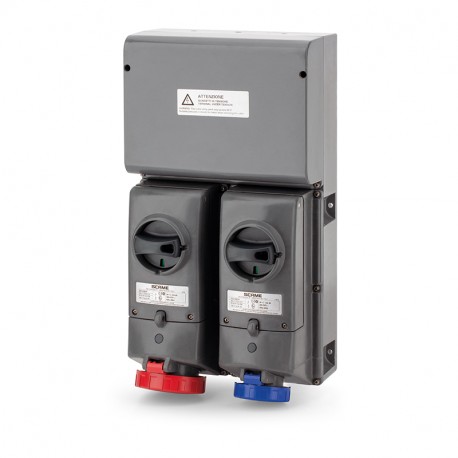

SCAME 579.EX20-151 579.EX20-151 SCAME IP66 32A 400V AC DISTRIBUTION BOX View larger
Images are for illustrative purposes only. Please refer to data sheet for details

579.EX20-151 SCAME IP66 32A 400V AC DISTRIBUTION BOX

579.EX20-151

579.EX20-151

SCAME

1 unit


Automation > Modular system
ADVANCE-GRP System

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Built to organize complex circuit layouts, the Scame IP66 32A 400V AC distribution box, listed as part 579.EX20-151, acts as a sturdy protective housing for electrical components. Industrial facilities rely on these assemblies to securely terminate multi-pole wiring networks while maintaining environmental protection standards. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Synthetical description: DISTRIBUTION ASSEMBLY
  • Material: GRP Glass Reinforced Polyester
  • Colour: GREY
  • Protection degree IP: IP66
  • Mounting version: SURFACE MOUNTING
  • Rated current: 32A
  • Rated voltage: 400V
  • Working frequency: 50Hz 60Hz
  • Poles: 3P+N+E
  • Hour position: 6h
  • GLOW WIRE: GW 960°C
  • Self-extinguishing UL94: V0
  • Group and categories EX: II 3D
  • Ambient temperature Ta min: -25 °C
  • Ambient temperature Ta max: 60 °C
  • Commercial Series: ADVANCE-GRP System

More info

▲
Commercial Series
ADVANCE-GRP System
Synthetical description
DISTRIBUTION ASSEMBLY
Material
GRP Glass Reinforced Polyester
Colour
GREY
Protection degree IP
IP66
Mounting version
SURFACE MOUNTING
Rated current
32A
Rated voltage
400V
Working frequency
50Hz
60Hz
Poles
3P+N+E
Hour position
6h
GLOW WIRE
GW 960°C
Self-extinguishing UL94
V0
Group and categories EX
II 3D
Ambient temperature Ta min
-25 °C
Ambient temperature Ta max
60 °C
Catalogue notes
Cable entries to drill
ATEX [ATmosphères EXplosibles]: for applications in potentially explosive atmospheres.


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
