View larger
Images are for illustrative purposes only. Please refer to data sheet for details

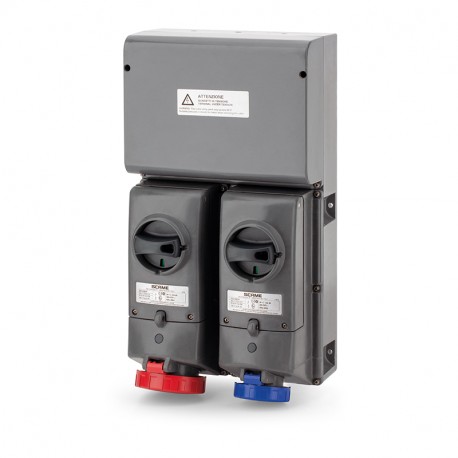

579.EX20-113 SCAME IP66 25A 400V AC DISTRIBUTION BOX
579.EX20-113
579.EX20-113
SCAME
1 unit
Automation > Modular system
ADVANCE-GRP System
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Commercial Series
ADVANCE-GRP System
Synthetical description
DISTRIBUTION ASSEMBLY
Material
GRP Glass Reinforced Polyester
Colour
GREY
Protection degree IP
IP66
Mounting version
SURFACE MOUNTING
Rated current
25A
Rated voltage
400V
Working frequency
50Hz
60Hz
GLOW WIRE
GW 960°C
Self-extinguishing UL94
V0
Group and categories EX
II 3D
Ambient temperature Ta min
-25 °C
Ambient temperature Ta max
60 °C
Catalogue notes
Cable entries to drill
ATEX [ATmosphères EXplosibles]: for applications in potentially explosive atmospheres.
