> SCAME > Interlocked switch socket outlets - SCAME > ADVANCE-GRP Series IP66/IP67 > 402.63834-F

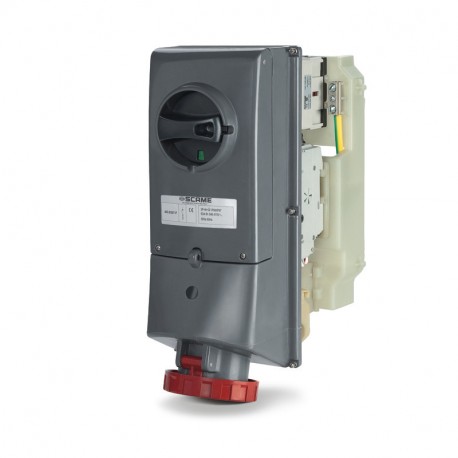

SCAME 402.63834-F 402.63834-F SCAME INTERLOCK.SOCKET 2P+E IP66/IP67 63A 6h View larger
Images are for illustrative purposes only. Please refer to data sheet for details

402.63834-F SCAME INTERLOCK.SOCKET 2P+E IP66/IP67 63A 6h

402.63834-F

402.63834-F

SCAME

1 unit


Automation > Interlocked switch socket outlets
ADVANCE-GRP Series IP66/IP67

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Material series
ADVANCE GRP Series
Synthetical description
INTERLOCKED SOCKET
Mounting version
SURFACE MOUNTING
Rated current
63A
Poles
2P+E
Hour position
3h
Rated voltage (range)
50-200V
Rated voltage
>50-250V
Working frequency
DC
Colour
GREY
Material
GRP Glass Reinforced Polyester
Protection degree
Watertight
Protection degree IP
IP66/IP67/IP69
Protection degree IK
IK10
Terminals
Screw terminals
Contact material
CuZn (brass)
Flange
170X380MM
Working temperature
-40°C/+60°C
GLOW WIRE
GW 960°C
Self-extinguishing UL94
V0
Options
With mechanical interlock
Notes
WITH FUSE HOLDER
Fuse type
gG 22x58mm
Padlock
ø6,3mm
Catalogue notes


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
