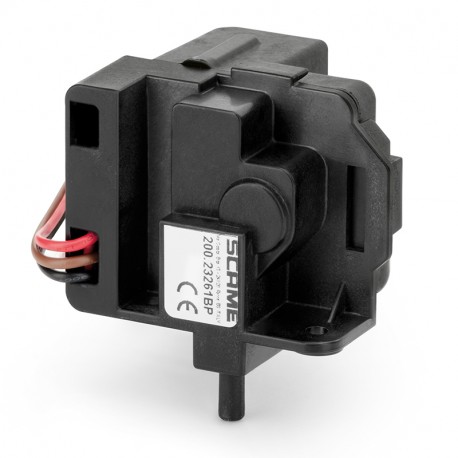

SCAME 200.23261BS 200.23261BS SCAME TOP PLUG LOCK DAM T2S-T2C View larger
Images are for illustrative purposes only. Please refer to data sheet for details

200.23261BS SCAME TOP PLUG LOCK DAM T2S-T2C

200.23261BS

200.23261BS

SCAME

12 units


Connectors > Connector for electric vehicles
LIBERA Series

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A superior plug block assembly designed to secure charging interfaces and monitor connection states via built-in microswitches. This Scame 200.23261BS accessory enhances the safety and operational reliability of modern EV charging stations.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Synthetical description: SUPERIOR PLUG BLOCK
  • Type: TYPE 2C and TYPE 2S
  • Protection degree IP: IP20
  • Protection degree IK: IK07
  • Rated current: 250÷1600mA
  • Rated voltage: 12÷15,5VDC
  • Colour: BLACK
  • Material: THERMOPLASTIC
  • Notes: 2 MICROSWITCHES (ON/OFF)
  • Working temperature: -30°C/+40°C
  • GLOW WIRE: GW 850°C
  • UV protection: UV resistant
  • Saline solution: Resistant
  • Trigger time: 50÷300ms
  • Endurance: 100.000 cycles
  • Commercial Series: LIBERA Series

More info

▲
Commercial Series
LIBERA Series
Synthetical description
SUPERIOR PLUG BLOCK
Type
TYPE 2C and TYPE 2S
Protection degree IP
IP20
Protection degree IK
IK07
Rated current
250÷1600mA
Rated voltage
12÷15,5VDC
Colour
BLACK
Material
THERMOPLASTIC
Notes
2 MICROSWITCHES (ON/OFF)
Working temperature
-30°C/+40°C
GLOW WIRE
GW 850°C
UV protection
UV resistant
Saline solution
Resistant
Trigger time
50÷300ms
Piloting time
Endurance
100.000 cycles
