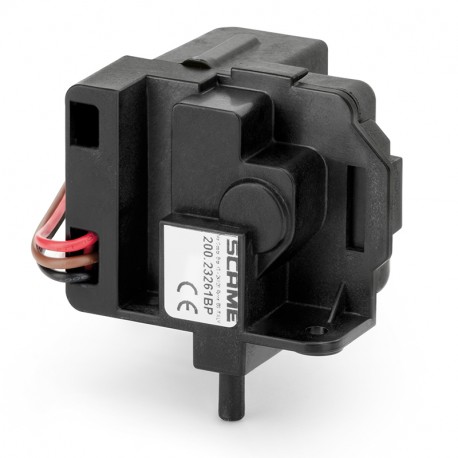

SCAME 200.23261BP 200.23261BP SCAME TOP PLUG LOCK DAM T2S-T2C View larger
Images are for illustrative purposes only. Please refer to data sheet for details

200.23261BP SCAME TOP PLUG LOCK DAM T2S-T2C

200.23261BP

200.23261BP

SCAME

12 units


Connectors > Connector for electric vehicles
LIBERA Series

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A precision plug locking mechanism engineered to manage secure retention states in advanced charging infrastructure. The Scame 200.23261BP component provides reliable feedback loops for automated EV supply equipment.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Synthetical description: SUPERIOR PLUG BLOCK
  • Type: TYPE 2C and TYPE 2S
  • Protection degree IP: IP20
  • Protection degree IK: IK07
  • Rated current: 250÷1600mA
  • Rated voltage: 12÷15,5VDC
  • Colour: BLACK
  • Material: THERMOPLASTIC
  • Notes: 1 MICROSWITCH (ON) 3PIN
  • Working temperature: -30°C/+40°C
  • GLOW WIRE: GW 850°C
  • UV protection: UV resistant
  • Saline solution: Resistant
  • Trigger time: 50÷300ms
  • Endurance: 100.000 cycles
  • Commercial Series: LIBERA Series

More info

▲
Commercial Series
LIBERA Series
Synthetical description
SUPERIOR PLUG BLOCK
Type
TYPE 2C and TYPE 2S
Protection degree IP
IP20
Protection degree IK
IK07
Rated current
250÷1600mA
Rated voltage
12÷15,5VDC
Colour
BLACK
Material
THERMOPLASTIC
Notes
1 MICROSWITCH (ON) 3PIN
Working temperature
-30°C/+40°C
GLOW WIRE
GW 850°C
UV protection
UV resistant
Saline solution
Resistant
Trigger time
50÷300ms
Piloting time
Endurance
100.000 cycles
