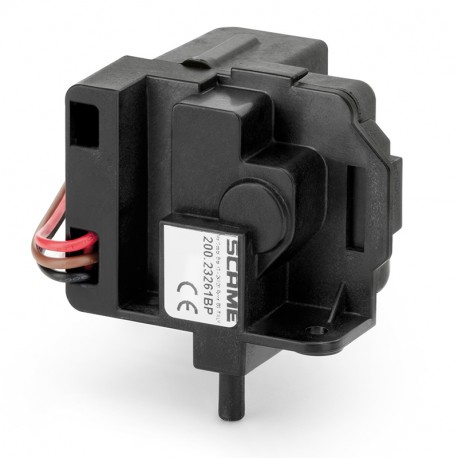

200.23261BL SCAME TOP PLUG LOCK DAM T2 3PIN
200.23261BL
200.23261BL
SCAME
12 units
Connectors > Connector for electric vehicles
LIBERA Series
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A specialized plug block unit built to manage locking functions within standardized electric vehicle charging interfaces. This Scame 200.23261BL part ensures long-term operational durability without internal switching elements.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Synthetical description: SUPERIOR PLUG BLOCK
- Type: TYPE 2C and TYPE 2S
- Protection degree IP: IP20
- Protection degree IK: IK07
- Rated current: 250÷1600mA
- Rated voltage: 12÷15,5VDC
- Colour: BLACK
- Material: THERMOPLASTIC
- Notes: SENZA MICROSWITCH
- Working temperature: -30°C/+40°C
- GLOW WIRE: GW 850°C
- UV protection: UV resistant
- Saline solution: Resistant
- Trigger time: 50÷300ms
- Endurance: 100.000 cycles
- Commercial Series: LIBERA Series
More info
▲Commercial Series
LIBERA Series
Synthetical description
SUPERIOR PLUG BLOCK
Type
TYPE 2C and TYPE 2S
Protection degree IP
IP20
Protection degree IK
IK07
Rated current
250÷1600mA
Rated voltage
12÷15,5VDC
Colour
BLACK
Material
THERMOPLASTIC
Notes
SENZA MICROSWITCH
Working temperature
-30°C/+40°C
GLOW WIRE
GW 850°C
UV protection
UV resistant
Saline solution
Resistant
Trigger time
50÷300ms
Piloting time
Endurance
100.000 cycles
